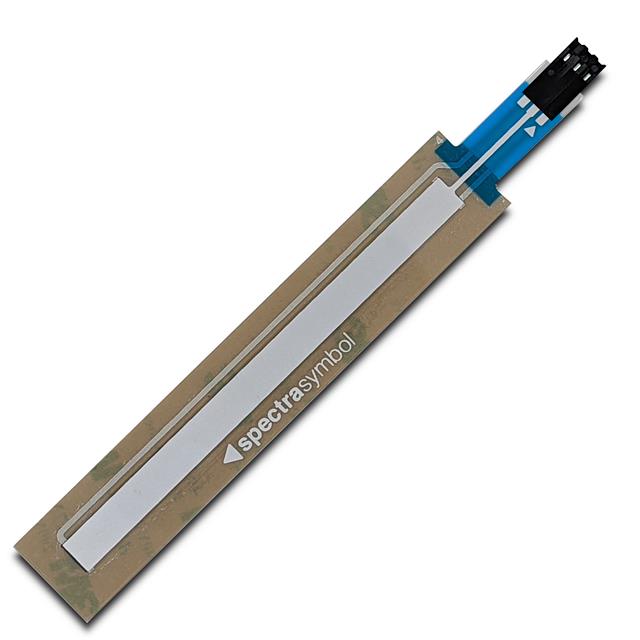

SP-L-0050-103-1%-RLD
ActiveSpectra Symbol
SENSOR LINEAR 50MM CONNECTOR
Deep-Dive with AI
Search across all available documentation for this part.
SP-L-0050-103-1%-RLD
ActiveSpectra Symbol
SENSOR LINEAR 50MM CONNECTOR
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SP-L-0050-103-1%-RLD |
|---|---|
| Actuator Type | Flexible Membrane - Linear |
| For Measuring | Linear Position |
| Linear Range [Max] | 1.97 in |
| Linear Range [Max] | 50 mm |
| Linear Range [Min] | 0 mm |
| Linear Range [Min] | 0 in |
| Linearity | 1 % |
| Mounting Type | Custom |
| Operating Temperature [Max] | 50 °C |
| Operating Temperature [Min] | -40 °C |
| Output | Resistive |
| Package / Case | Sensor Strip |
| Resistance | 10000 Ohms |
| Resistance Tolerance | 20 % |
| Technology | Resistive |
| Termination Style | Connector |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 14.60 | |
| 10 | $ 11.70 | |||
| 30 | $ 10.51 | |||
| 50 | $ 10.00 | |||
| 100 | $ 9.34 | |||
Description
General part information
SP-L-0050-103-1%-RLD
Resistive Sensor Linear Position Flexible Membrane - Linear Connector
Documents
Technical documentation and resources
No documents available
