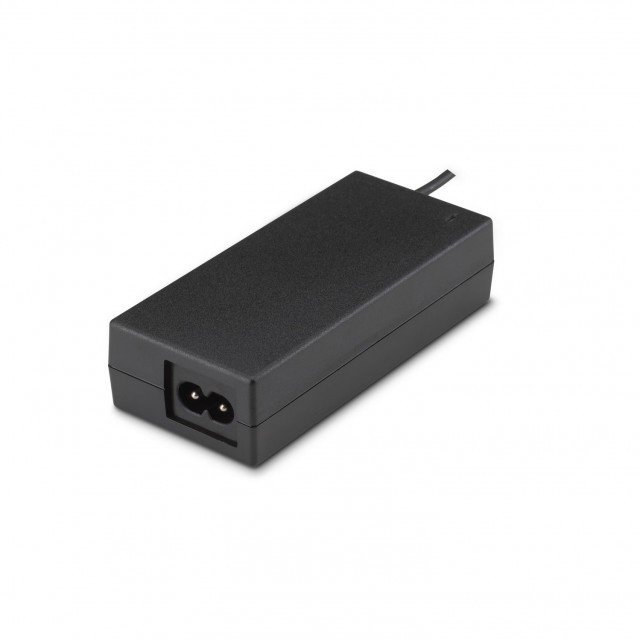

FSP065-DHCM1
ActiveFSP Technology Inc.
AC/DC DESKTOP ADAPTER 12V 65W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
FSP065-DHCM1
ActiveFSP Technology Inc.
AC/DC DESKTOP ADAPTER 12V 65W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | FSP065-DHCM1 |
|---|---|
| Applications | Medical |
| Approval Agency | cURus, CE, TUV |
| Cord Length | 1.5 m |
| Cord Length | 59 in |
| Efficiency | 87 % |
| Form | Desktop (Class II) |
| Input Connector | IEC 320-C8 |
| Input Type | Cord |
| No Load Power Consumption | 210 mW |
| Operating Temperature [Max] | 40 °C |
| Operating Temperature [Min] | 0 °C |
| Polarization | Positive Center |
| Power (Watts) | 65 W |
| Region Utilized | International |
| Size / Dimension [x] | 5.08 in |
| Size / Dimension [x] | 129 mm |
| Size / Dimension [y] | 51 mm |
| Size / Dimension [y] | 2.01 in |
| Size / Dimension [z] | 30.9 mm |
| Size / Dimension [z] | 1.22 in |
| Standard Number | 60601-1 |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Output | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 30.66 | |
Description
General part information
FSP065-DHCM1
12V 65 W AC/DC External Desktop (Class II) Adapter Cord (Sold Separately) Input
