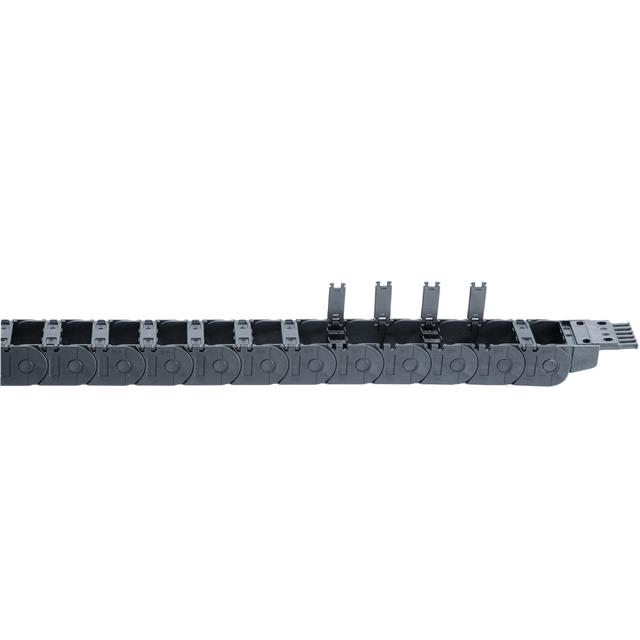

2700-10-150-0
ActiveIgus
CBLE CARRIER 1.97H X 3.94W 1=1FT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
2700-10-150-0
ActiveIgus
CBLE CARRIER 1.97H X 3.94W 1=1FT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 2700-10-150-0 |
|---|---|
| Cavity Height [z] | 35.05 mm |
| Cavity Height [z] | 1.38 in |
| Cavity Width | 100.08 mm |
| Cavity Width | 3.94 in |
| Frame Type | Open |
| Link Pitch | 2.2 in |
| Link Pitch | 55.88 mm |
| Loading Side | Inside and Outside Bend |
| Material | Igumid G |
| Minimum Bend Radius [radius] | 150.11 mm |
| Minimum Bend Radius [radius] | 5.91 in |
| Operating Temperature [Max] | 120 °C |
| Operating Temperature [Min] | -40 °C |
| Outer Height | 50.04 mm |
| Outer Height | 1.97 in |
| Outer Width [x] | 4.57 in |
| Outer Width [x] | 116.08 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 28.11 | |
| 25 | $ 27.56 | |||
| 50 | $ 26.98 | |||
| 100 | $ 24.02 | |||
Description
General part information
2700-10-150-0
CBLE CARRIER 1.97H X 3.94W 1=1FT
