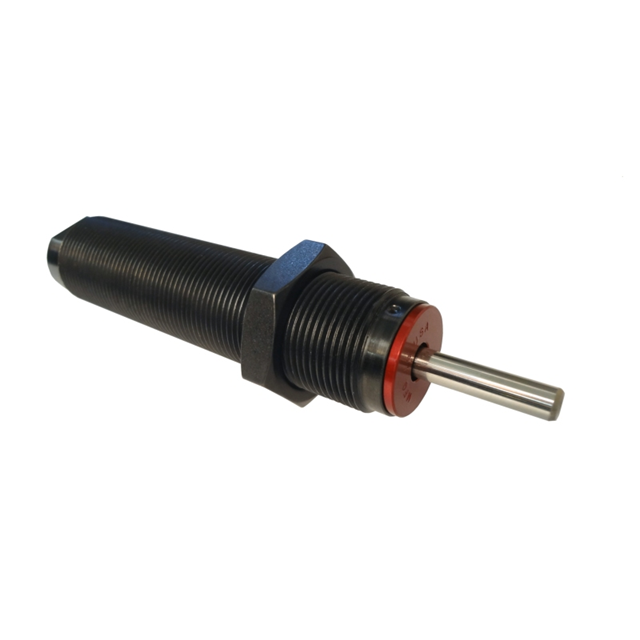

7253-24-1
ActiveDeschner Corporation
1" STROKE SELF-COMP SHOCK
Deep-Dive with AI
Search across all available documentation for this part.
7253-24-1
ActiveDeschner Corporation
1" STROKE SELF-COMP SHOCK
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 7253-24-1 |
|---|---|
| Impact Capacity per Cycle | 900 inlb |
| Impact Capacity per Cycle | 101.69 J |
| Impact Velocity | 14 ft/s |
| Impact Velocity | 4.3 m/s |
| Length - Extended [x] | 5.19 in |
| Length - Extended [x] | 131.83 mm |
| Operating Temperature [Max] | 65 °C |
| Operating Temperature [Min] | 0 °C |
| Operation | Single-Acting, Push |
| Reset Force | 8 lbf |
| Reset Force | 35.6 N |
| Reset Time | 0.2 s |
| Stroke Length | 1 in |
| Stroke Length | 25.4 mm |
| Technology | Hydraulic |
| Type | Shock Absorber |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 114.78 | |
Description
General part information
7253-24-1
1" STROKE SELF-COMP SHOCK
