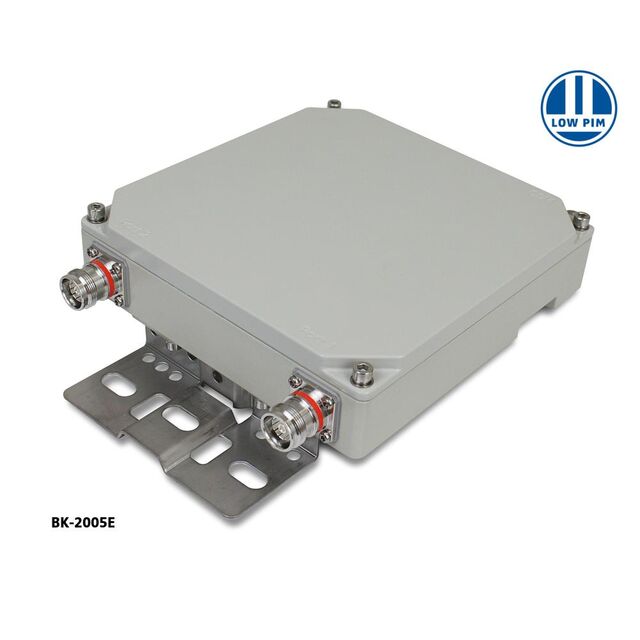

BK-2005E
ActiveMicrolab
DPLX AWS1/AWS3 LOW PIM 4.3-10
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
BK-2005E
ActiveMicrolab
DPLX AWS1/AWS3 LOW PIM 4.3-10
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | BK-2005E |
|---|---|
| Frequency Bands (Low / High) [Max] [custom] | 2.18 GHz |
| Frequency Bands (Low / High) [Max] [custom] | 1.735 GHz |
| Frequency Bands (Low / High) [Min] [custom] | 1.71 GHz |
| Frequency Bands (Low / High) [Min] [custom] | 2.16 GHz |
| Mounting Type | Chassis Mount |
| Package / Case | Module |
| Return Loss (Low Band / High Band) [custom] | 20 dB |
| Return Loss (Low Band / High Band) [custom] | 20 dB |
| Type | Diplexer |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Box (TB) | 1 | $ 398.40 | |
Description
General part information
BK-2005E
RF Diplexer 1.71GHz ~ 1.735GHz / 2.16GHz ~ 2.18GHz Module
