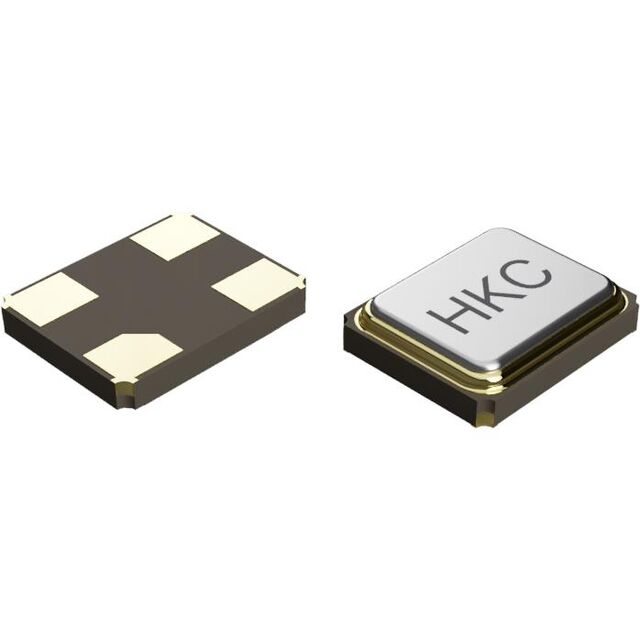

2016S45200BMDACBBFB-TR
ActiveHKC
CRYSTAL 52.000MHZ, 10PPM, 10PP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
2016S45200BMDACBBFB-TR
ActiveHKC
CRYSTAL 52.000MHZ, 10PPM, 10PP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 2016S45200BMDACBBFB-TR |
|---|---|
| ESR (Equivalent Series Resistance) | 60 Ohms |
| Frequency | 52 MHz |
| Frequency Stability | 10 ppm |
| Frequency Tolerance | 10 ppm |
| Height - Seated (Max) [Max] [z] | 0.5 mm |
| Height - Seated (Max) [Max] [z] | 0.02 " |
| Load Capacitance | 8 pF |
| Mounting Type | Surface Mount |
| Operating Mode | Fundamental |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension [x] | 2 mm |
| Size / Dimension [x] | 0.079 in |
| Size / Dimension [y] | 0.063 in |
| Size / Dimension [y] | 1.6 mm |
| Type | MHz Crystal |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 3000 | $ 1.12 | |
| 6000 | $ 1.08 | |||
| 9000 | $ 0.97 | |||
Description
General part information
2016S45200BMDACBBFB-TR
52 MHz ±10ppm Crystal 8pF 60 Ohms 4-SMD, No Lead
