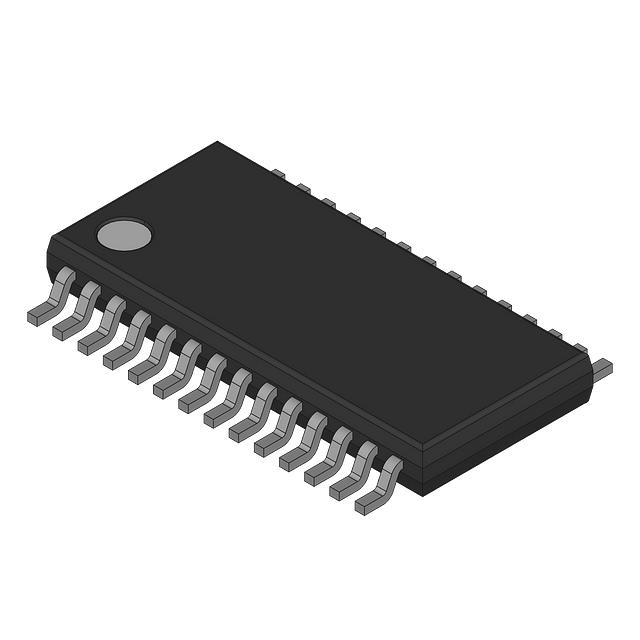

DS2120E+T&R
ObsoleteDallas Semiconductor
SCSI TERMINATOR, 9-LINE, 105OHM
Deep-Dive with AI
Search across all available documentation for this part.
DS2120E+T&R
ObsoleteDallas Semiconductor
SCSI TERMINATOR, 9-LINE, 105OHM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DS2120E+T&R |
|---|---|
| Mounting Type | Surface Mount |
| Number of Terminations | 9 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | 0 °C |
| Package / Case | 28-TSSOP |
| Package / Case | 0.173 in |
| Package / Case [y] | 4.4 mm |
| Supplier Device Package | 28-TSSOP |
| Type | SE, LVD, SCSI |
| Voltage - Supply [Max] | 5.5 V |
| Voltage - Supply [Min] | 2.7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 188 | $ 1.60 | |
Description
General part information
DS2120E+T&R
SCSI, LVD, SE Terminator 9 Terminations 28-TSSOP
Documents
Technical documentation and resources
No documents available
