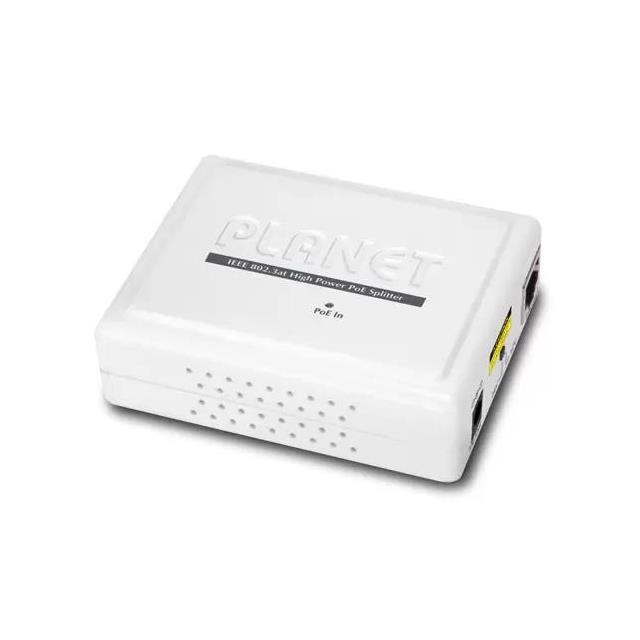

POE-162S
ActivePlanet
IEEE 802.3AT GIGABIT POE+ SPLITT
Deep-Dive with AI
Search across all available documentation for this part.
POE-162S
ActivePlanet
IEEE 802.3AT GIGABIT POE+ SPLITT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | POE-162S |
|---|---|
| Approval Agency | FCC, CE |
| Compliance | IEEE802.3at |
| Data Rate | 10 Mbps, 1000 Mbps, 100 Mbps |
| Input Connector | 2.5mm Receptacle (Power), RJ45 (Data) |
| Mounting Type | Desktop |
| Note | AC Power Cord Sold Separately |
| Number of Ports | 1 |
| Output Connector | RJ45 (Data, Power) |
| Size / Dimension [x] | 3.74 " |
| Size / Dimension [x] | 95 mm |
| Size / Dimension [y] | 2.76 in |
| Size / Dimension [y] | 70 mm |
| Size / Dimension [z] | 0.98 in |
| Size / Dimension [z] | 25 mm |
| Type | Splitter |
| Voltage - Input [Max] | 56 VDC |
| Voltage - Input [Min] | 52 V |
| Voltage - Output | 24 V, 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 71.14 | |
| Retail Package | 1 | $ 44.00 | ||
Description
General part information
POE-162S
12V, 24V Power Over Ethernet (POE) 1 Port Splitter 10/100/1000 Mbps Data Rate
Documents
Technical documentation and resources
No documents available
