392JA1K
ObsoleteHoneywell Sensing and Productivity Solutions
POT 1K OHM 1/2W PLASTIC LINEAR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
392JA1K
ObsoleteHoneywell Sensing and Productivity Solutions
POT 1K OHM 1/2W PLASTIC LINEAR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 392JA1K |
|---|---|
| Actuator Diameter [diameter] | 0.125 in |
| Actuator Diameter [diameter] | 3.18 mm |
| Actuator Length [z] | 22.23 mm |
| Actuator Length [z] | 0.875 in |
| Actuator Type | Slotted |
| Adjustment Type | Top Adjustment |
| Built in Switch | False |
| Bushing Thread | 1/4-32 |
| Number of Gangs | 1 |
| Number of Turns | 1 |
| Power (Watts) | 0.5 W |
| Power (Watts) | 0.5 W |
| Resistance (Ohms) | 1 kOhms |
| Resistive Material | Conductive Plastic |
| Rotation | 295 ° |
| Size - Body [diameter] | 12.95 mm |
| Size - Body [diameter] | 0.51 in |
| Taper | Linear |
| Termination Style | PC Pins |
| Tolerance | 10 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
392JA1K

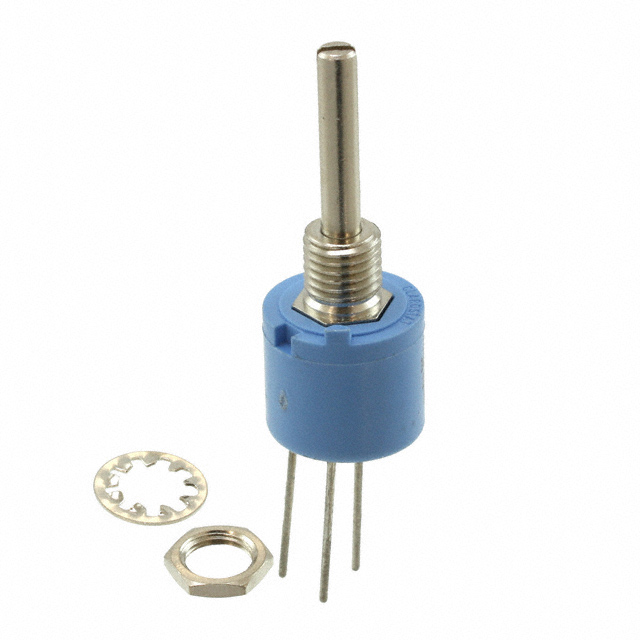

1k Ohm 1 Gang Linear Panel Mount Potentiometer 1.0 Turns Conductive Plastic 0.5W, 1/2W PC Pins
Documents
Technical documentation and resources
