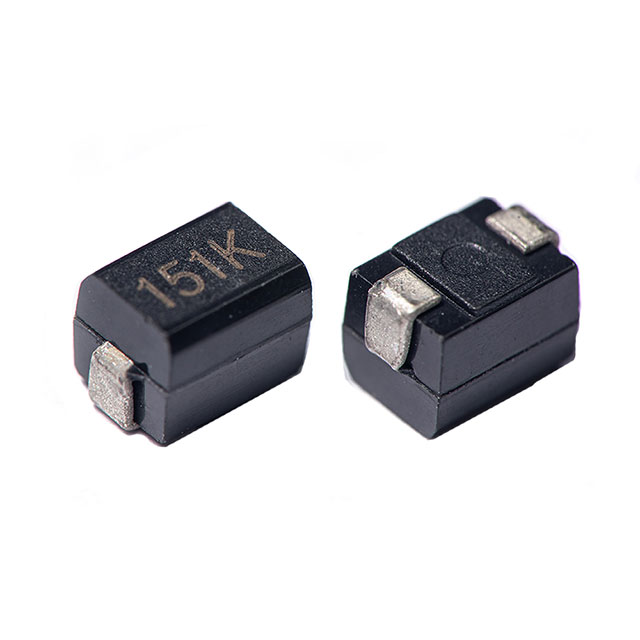

CM45325R6KSB
ActiveABC Taiwan Electronics Corp.
WOUND CHIP INDUCTOR,4532, 5.60UH
Deep-Dive with AI
Search across all available documentation for this part.
CM45325R6KSB
ActiveABC Taiwan Electronics Corp.
WOUND CHIP INDUCTOR,4532, 5.60UH
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | CM45325R6KSB |
|---|---|
| Current Rating (Amps) | 300 mA |
| DC Resistance (DCR) [Max] | 1.1 Ohm |
| Frequency - Self Resonant | 50 MHz |
| Height - Seated (Max) [Max] [z] | 3.4 mm |
| Height - Seated (Max) [Max] [z] | 0.134 in |
| Inductance | 5.6 µH |
| Inductance Frequency - Test | 7.96 MHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 1812 (4532 Metric) |
| Q @ Freq | 7.96 MHz, 50 |
| Shielding | Unshielded |
| Size / Dimension [x] | 0.177 in |
| Size / Dimension [x] | 4.5 mm |
| Size / Dimension [y] | 3.2 mm |
| Size / Dimension [y] | 0.126 " |
| Tolerance | 10 % |
| Type | Wirewound |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 1 | $ 0.25 | |
| 100 | $ 0.18 | |||
Description
General part information
CM45325R6KSB
5.6 µH Unshielded Wirewound Inductor 300 mA 1.1Ohm Max 1812 (4532 Metric)
Documents
Technical documentation and resources
No documents available
