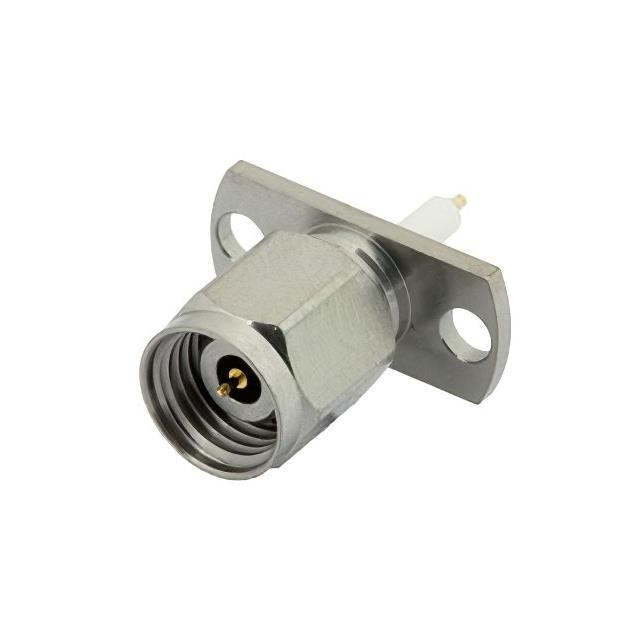

PE44220
ActivePasternack
2.4MM MALE CONNECTOR SOLDER ATTA
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PE44220
ActivePasternack
2.4MM MALE CONNECTOR SOLDER ATTA
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PE44220 |
|---|---|
| Body Material | Stainless Steel |
| Center Contact Plating | Gold |
| Connector Style | OS-50 |
| Connector Style | 2.4 mm |
| Connector Style | APC-2.4 |
| Connector Type | Male Pin, Plug |
| Contact Termination | Solder |
| Dielectric Material | Polyphenylene Oxide (PPO) |
| Housing Color | Silver |
| Impedance | 50 Ohms |
| Mounting Feature | Flange |
| Number of Ports | 1 |
| Shield Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Retail Package | 1 | $ 35.00 | |
| 10 | $ 33.60 | |||
| 25 | $ 32.20 | |||
| 100 | $ 30.80 | |||
Description
General part information
PE44220
2.4mm (APC-2.4, OS-50) Connector Plug, Male Pin 50 Ohms Panel Mount Solder
