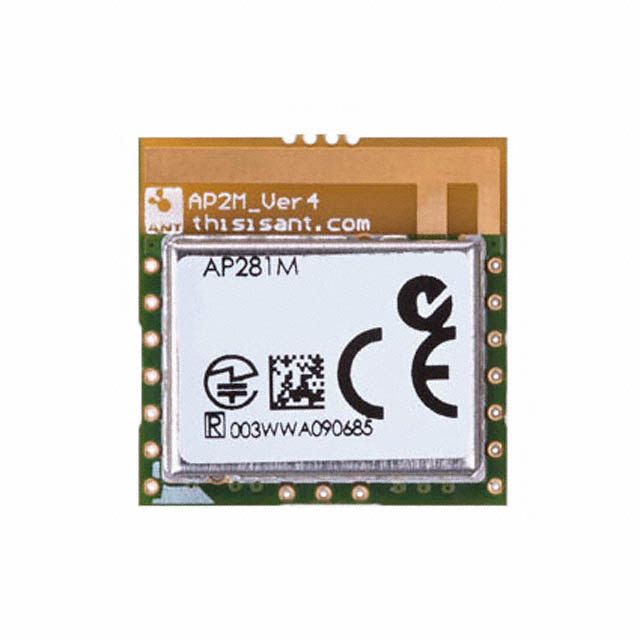

ANTAP281M4IB-REEL
ObsoleteDynastream Innovations
RF TXRX MOD ISM>1GHZ CHIP SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ANTAP281M4IB-REEL |
|---|---|
| Antenna Type | Integrated, Chip |
| Current - Receiving | 17 mA |
| Current - Transmitting [Max] | 13 mA |
| Current - Transmitting [Min] | 11 mA |
| Data Rate | 20 kbps |
| Frequency | 2.4 GHz |
| Modulation | GFSK |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 17-SMD Module |
| Power - Output | 0 dBm |
| RF Family/Standard | General ISM > 1GHz |
| Sensitivity | -85 dBm |
| Utilized IC / Part | CC2650 |
| Voltage - Supply [Max] | 3.6 V |
| Voltage - Supply [Min] | 1.9 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
ANTAP281M4IB-REEL
General ISM > 1GHz Transceiver Module 2.4GHz Integrated, Chip Surface Mount
