3000002595
ActiveFaulhaber
1741U024CXR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 3000002595 |
|---|---|
| Diameter - Shaft [diameter] | 0.137 in |
| Diameter - Shaft [diameter] | 3.5 mm |
| Function | Standard |
| Length - Shaft and Bearing | 8 mm |
| Length - Shaft and Bearing [x] | 0.314 in |
| Motor Type | Brushed |
| Mounting Hole Spacing | 10 mm |
| Mounting Hole Spacing | 0.394 in |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -30 ░C |
| Power - Rated | 9 W |
| RPM | 3940 RPM |
| Size / Dimension [diameter] | 0.669 in |
| Size / Dimension [diameter] | 17 mm |
| Termination Style | Solder Tab |
| Torque - Rated (oz-in / mNm) | 8.4 mNm |
| Torque - Rated (oz-in / mNm) | 1.19 oz-in |
| Type | DC Motor |
| Voltage - Rated | 24 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 153.10 | |
| 5 | $ 121.70 | |||
| 20 | $ 93.90 | |||
| 50 | $ 83.50 | |||
Description
General part information
3000002595

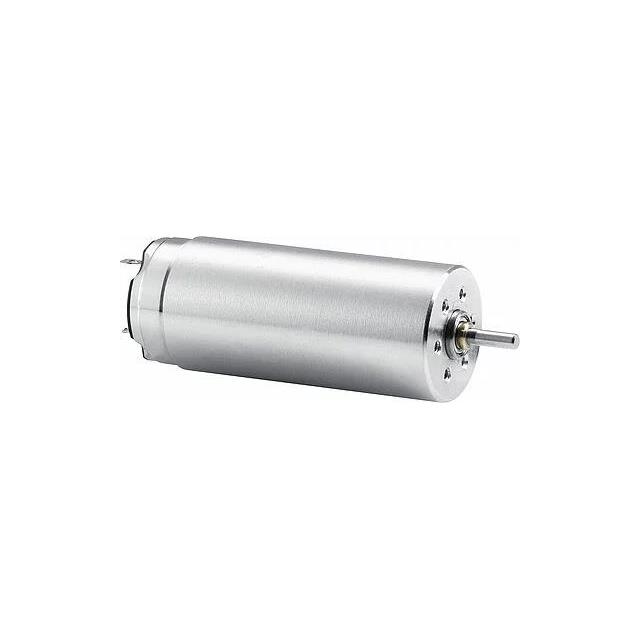

Brushed DC Motor Standard 3940 RPM 9W 24VDC
