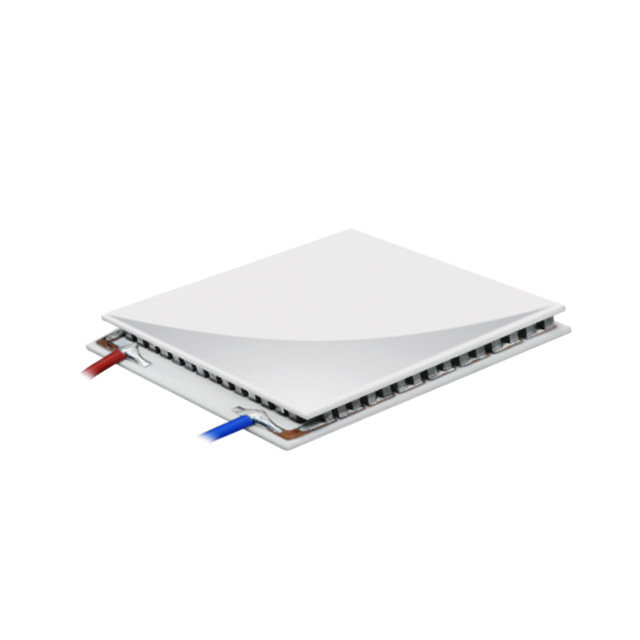

TG12-2.5-01LS
ActiveMarlow Industries, Inc.
TEG GENERATOR 30X30X3.94MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TG12-2.5-01LS
ActiveMarlow Industries, Inc.
TEG GENERATOR 30X30X3.94MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TG12-2.5-01LS |
|---|---|
| Current - Max [Max] | 500 mA |
| Features | Lapped, Sealed, Lead Wires |
| Height [z] | 3.94 mm |
| Number of Stages | 1 |
| Operating Temperature | 200 °C |
| Qmax @ Th | 0.4 W |
| Size / Dimension [x] | 34.01 mm |
| Size / Dimension [y] | 30 mm |
| Voltage - Max [Max] | 1.9 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 24.56 | |
Description
General part information
TG12-2.5-01LS
Peltier Module 0.4W @ 50°C 0.5 A 200°C
