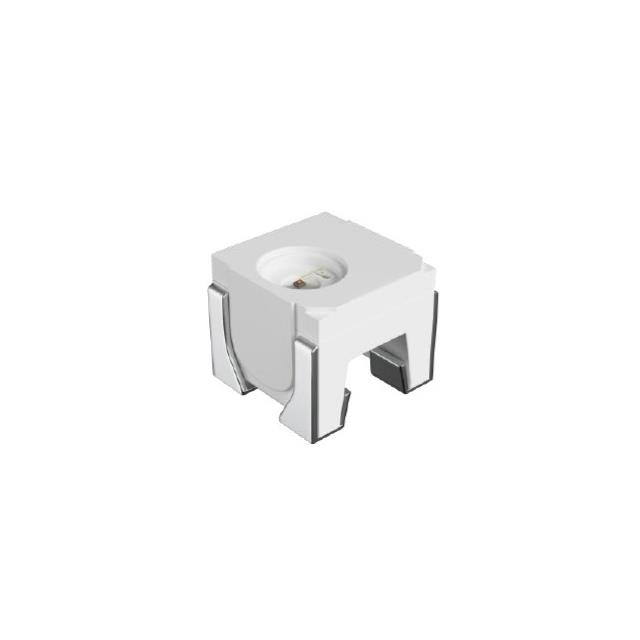

QLSP30YK
ActiveQuelighting Corp
PLCC, SIDE VIEW, YELLOW, 60MA
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
QLSP30YK
ActiveQuelighting Corp
PLCC, SIDE VIEW, YELLOW, 60MA
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | QLSP30YK |
|---|---|
| Color | Yellow |
| Current - Max [Max] | 60 mA |
| Current - Test | 60 mA |
| Height - Seated (Max) [Max] [z] | 4.1 mm |
| Height - Seated (Max) [Max] [z] | 0.161 " |
| Lumens/Watt @ Current - Test | 114 lm/W |
| Mounting Type | Surface Mount, Right Angle |
| Package / Case | 2-SMD, Boomerang |
| Size / Dimension [x] | 0.156 in |
| Size / Dimension [x] | 3.95 mm |
| Size / Dimension [y] | 0.14 " |
| Size / Dimension [y] | 3.55 mm |
| Supplier Device Package | SMD |
| Viewing Angle | 120 ° |
| Voltage - Forward (Vf) (Typ) | 2.2 V |
| Wavelength | 590 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.59 | |
| 10 | $ 0.36 | |||
| 100 | $ 0.21 | |||
| Digi-Reel® | 1 | $ 0.59 | ||
| 10 | $ 0.36 | |||
| 100 | $ 0.21 | |||
| Tape & Reel (TR) | 1000 | $ 0.16 | ||
| 2000 | $ 0.15 | |||
| 5000 | $ 0.14 | |||
| 10000 | $ 0.13 | |||
| 25000 | $ 0.12 | |||
| 50000 | $ 0.12 | |||
Description
General part information
QLSP30YK
LED Lighting Color - Yellow 590nm 2-SMD, Boomerang
