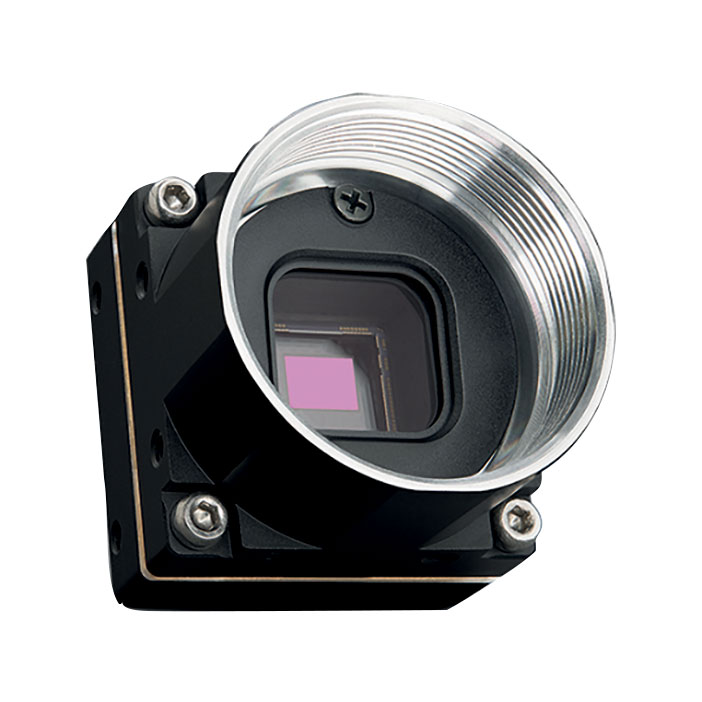

FFY-U3-04S2M-C
ActiveFLIR Integrated Imaging Solutions, Inc.
0.4MP B&W U3 1/2.9" C-MOUNT
Deep-Dive with AI
Search across all available documentation for this part.
FFY-U3-04S2M-C
ActiveFLIR Integrated Imaging Solutions, Inc.
0.4MP B&W U3 1/2.9" C-MOUNT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | FFY-U3-04S2M-C |
|---|---|
| Color | Monochrome |
| Frames per Second | 121 per Second |
| Height (Max) | 27 mm |
| Height (Max) [Max] | 1.063 in |
| Interface | USB 3.1 |
| Lens Mount | C |
| Mounting Type | Chassis Mount |
| Package / Case | Module |
| Pixel Size [x] | 6.9 µm |
| Pixel Size [y] | 6.9 µm |
| Resolution [x] | 720 |
| Resolution [y] | 540 |
| Sensor | IMX297 |
| Shutter | Global |
| Size / Dimension [x] | 27 mm |
| Size / Dimension [x] | 1.063 in |
| Size / Dimension [y] | 0.654 " |
| Size / Dimension [y] | 16.6 mm |
| Supplier Device Package | Module |
| Type | CMOS |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 229.00 | |
Description
General part information
FFY-U3-04S2M-C
0.4MP B&W U3 1/2.9" C-MOUNT
Documents
Technical documentation and resources
No documents available
