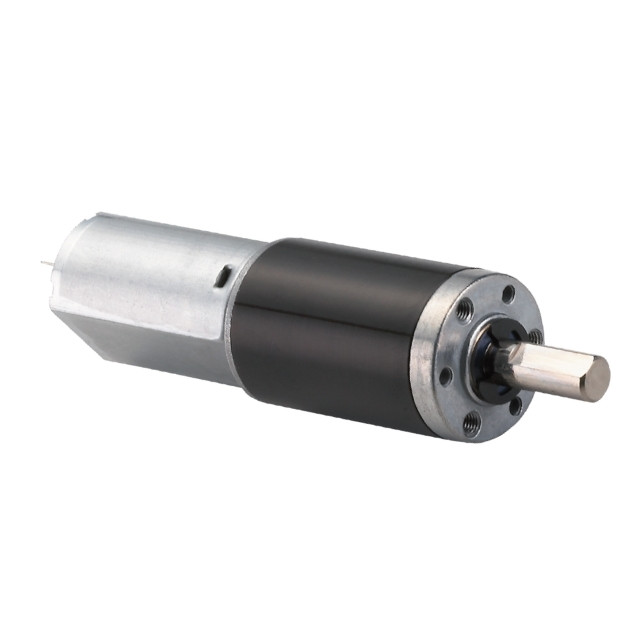

MOT-IG22CGM-24V
ActiveISL Products International
22MM PLANETARY GEAR MOTOR - BRUS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MOT-IG22CGM-24V
ActiveISL Products International
22MM PLANETARY GEAR MOTOR - BRUS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MOT-IG22CGM-24V |
|---|---|
| Diameter - Shaft [diameter] | 6 mm |
| Diameter - Shaft [diameter] | 0.236 in |
| Gear Reduction Ratio | 246 |
| Length - Shaft and Bearing [x] | 3.787 in |
| Length - Shaft and Bearing [x] | 96.2 mm |
| Motor Type | Brushed |
| Mounting Hole Spacing | 17 mm |
| Mounting Hole Spacing | 0.669 " |
| Power - Rated | 1.03 W |
| RPM | 27 RPM |
| Size / Dimension | Round |
| Size / Dimension [diameter] | 22 mm |
| Size / Dimension [diameter] | 0.866 in |
| Torque - Max Momentary (oz-in / mNm) | 1471 mNm |
| Torque - Max Momentary (oz-in / mNm) | 208.31 oz-in |
| Torque - Rated (oz-in / mNm) | 41.66 oz-in |
| Torque - Rated (oz-in / mNm) | 294.2 mNm |
| Type | DC Motor |
| Voltage - Rated | 24 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 141.98 | |
| 100 | $ 68.96 | |||
Description
General part information
MOT-IG22CGM-24V
Brushed DC Motor Gearmotor 27 RPM 1.03W 24VDC
