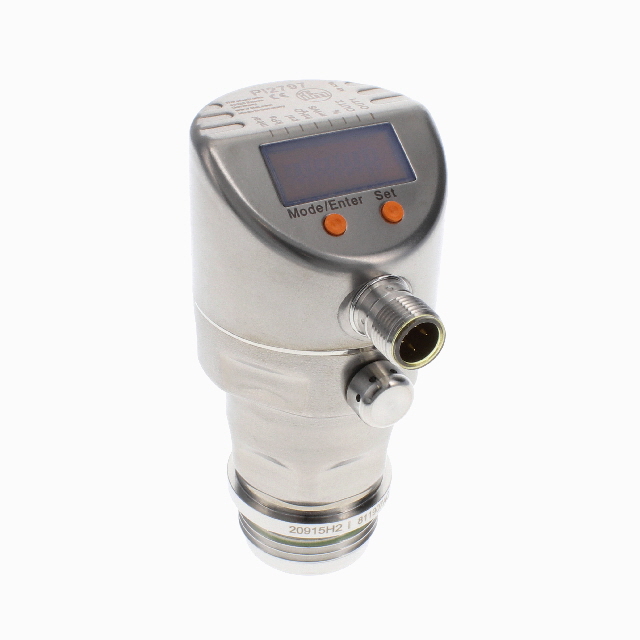

PI2797
Activeifm efector, inc.
SENSOR 14.5PSI M12
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PI2797
Activeifm efector, inc.
SENSOR 14.5PSI M12
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PI2797 |
|---|---|
| Accuracy | 0.2 % |
| Maximum Pressure | 435.11 PSI |
| Maximum Pressure | 3000 kPa |
| Operating Pressure [Max] | 100 kPa |
| Operating Pressure [Max] | 14.5 PSI, -14.5 PSI |
| Operating Pressure [Min] | -5 kPa |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -25 °C |
| Output Type | NC/NO, NPN/PNP |
| Package / Case | Cylinder, Threaded |
| Port Size | Male, M12 |
| Port Size | 1 |
| Port Style | Threaded |
| Termination Style | Connector |
| Voltage - Supply [Max] | 32 VDC |
| Voltage - Supply [Min] | 18 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 782.50 | |
Description
General part information
PI2797
Pressure Sensor -0.73PSI ~ 14.5PSI (-5kPa ~ 100kPa) Male - M12 x 1.0 Cylinder, Threaded
