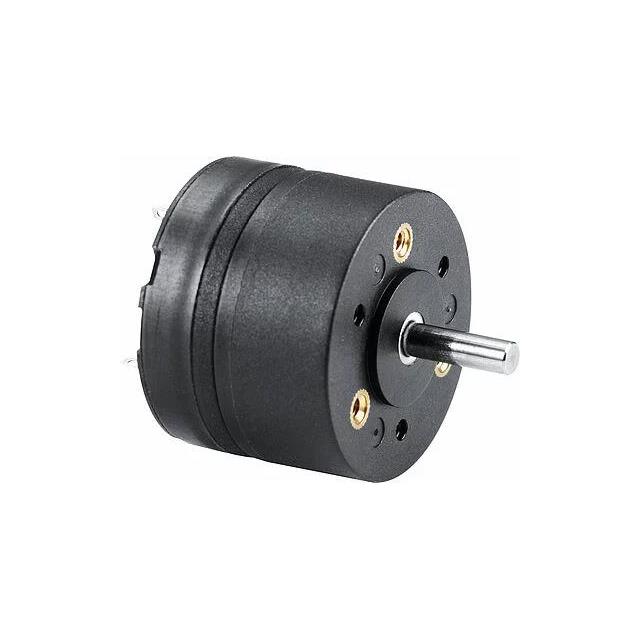

3000003988
ActiveFaulhaber
2619S012SR 112:1
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
3000003988
ActiveFaulhaber
2619S012SR 112:1
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 3000003988 |
|---|---|
| Diameter - Shaft [diameter] | 3 mm |
| Diameter - Shaft [diameter] | 0.118 in |
| Function | Standard |
| Gear Reduction Ratio | 112 |
| Length - Shaft and Bearing | 10.9 mm |
| Length - Shaft and Bearing | 0.429 in |
| Motor Type | Brushed |
| Mounting Hole Spacing | 17 mm |
| Mounting Hole Spacing | 0.669 " |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -25 °C |
| Power - Rated | 4 W |
| RPM | 44 RPM |
| Termination Style | Solder Tab |
| Torque - Rated (oz-in / mNm) | 13.17 oz-in |
| Torque - Rated (oz-in / mNm) | 93 mNm |
| Type | DC Motor |
| Voltage - Rated | 12 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 134.60 | |
| 5 | $ 109.40 | |||
| 20 | $ 84.00 | |||
| 50 | $ 79.90 | |||
Description
General part information
3000003988
Brushed DC Motor Standard 44 RPM 4W 12VDC
