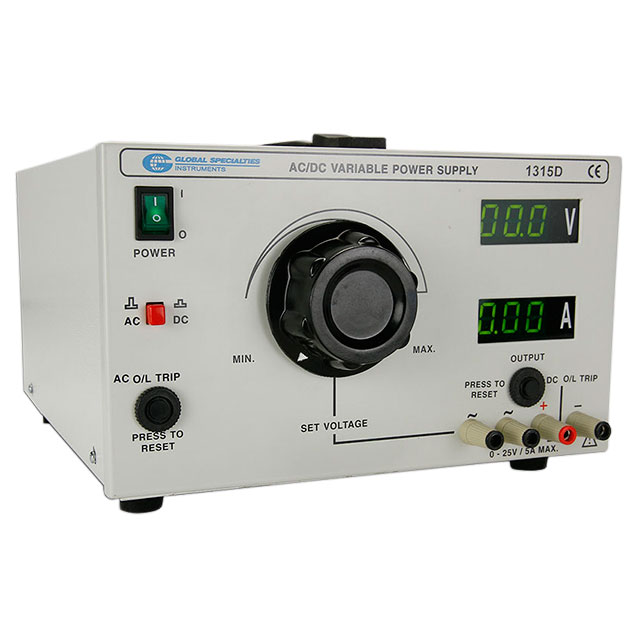

1315D
ObsoleteGLOBAL SPECIALTIES
AC/DC PS W/DIG READOUT 0-25V 5A
Deep-Dive with AI
Search across all available documentation for this part.
1315D
ObsoleteGLOBAL SPECIALTIES
AC/DC PS W/DIG READOUT 0-25V 5A
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 1315D |
|---|---|
| Current - Output | 5 A |
| Display Type | LED |
| Features | Selectable Output |
| Number of Characters | 2 |
| Number of Characters | 3 |
| Number of Outputs | 2 |
| Size / Dimension [x] | 295 mm |
| Size / Dimension [x] | 11.614 " |
| Size / Dimension [y] | 9.252 in |
| Size / Dimension [y] | 235 mm |
| Size / Dimension [z] | 6.102 in |
| Size / Dimension [z] | 155 mm |
| Type | Bench (AC to DC) |
| Voltage - Output [Max] | 25 V, 25 VAC |
| Voltage - Output [Min] | 0 VAC, 0 VDC |
| Voltage - Supply | 230 VAC |
| Voltage - Supply | 115 VAC |
| Weight | 22 lbs |
| Weight | 10 kg |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
1315D
0 ~ 25VDC, 0 ~ 25VAC Output Bench (AC to DC) Power Supply LED 5A, 5A Output Features Selectable Output
Documents
Technical documentation and resources
No documents available
