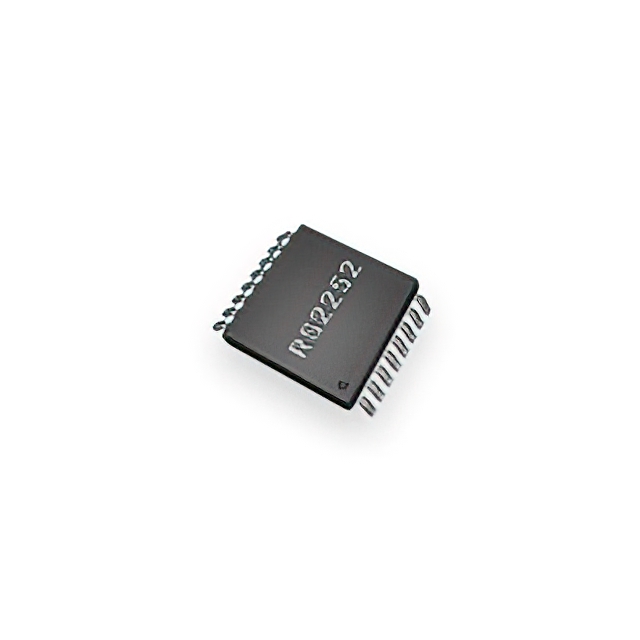

RS2252XTSS16
ActiveRunic Technology
IC SWITCH SP4T X 2 65OHM 16TSSOP
Deep-Dive with AI
Search across all available documentation for this part.
RS2252XTSS16
ActiveRunic Technology
IC SWITCH SP4T X 2 65OHM 16TSSOP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RS2252XTSS16 |
|---|---|
| -3db Bandwidth | 180 MHz |
| Channel Capacitance (CS(off), CD(off)) [custom] | 12.7 pF |
| Channel Capacitance (CS(off), CD(off)) [custom] | 12.7 pF |
| Channel-to-Channel Matching (ΔRon) | 1.5 Ohm |
| Charge Injection | 6 pC |
| Crosstalk | -110 dB |
| Current - Leakage (IS(off)) (Max) [Max] | 100 nA |
| Mounting Type | Surface Mount |
| Multiplexer/Demultiplexer Circuit | 4:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) [Max] | 65 Ohms |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 16-TSSOP |
| Package / Case [x] | 0.173 in |
| Package / Case [y] | 4.4 mm |
| Supplier Device Package | 16-TSSOP |
| Switch Circuit | SP4T |
| Switch Time (Ton, Toff) (Max) | 70 ns, 80 ns |
| Voltage - Supply, Single (V+) [Max] | 5.5 V |
| Voltage - Supply, Single (V+) [Min] | 2.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.42 | |
| 10 | $ 0.36 | |||
| 25 | $ 0.34 | |||
| 100 | $ 0.27 | |||
| 250 | $ 0.25 | |||
| 500 | $ 0.21 | |||
| 1000 | $ 0.16 | |||
| Digi-Reel® | 1 | $ 0.42 | ||
| 10 | $ 0.36 | |||
| 25 | $ 0.34 | |||
| 100 | $ 0.27 | |||
| 250 | $ 0.25 | |||
| 500 | $ 0.21 | |||
| 1000 | $ 0.16 | |||
| Tape & Reel (TR) | 4000 | $ 0.15 | ||
| 8000 | $ 0.14 | |||
| 12000 | $ 0.13 | |||
| 28000 | $ 0.12 | |||
Description
General part information
RS2252XTSS16
2 Circuit IC Switch 4:1 65Ohm 16-TSSOP
Documents
Technical documentation and resources
No documents available
