PEAMD310-14
ActiveTT Electronics/Power Partners Inc.

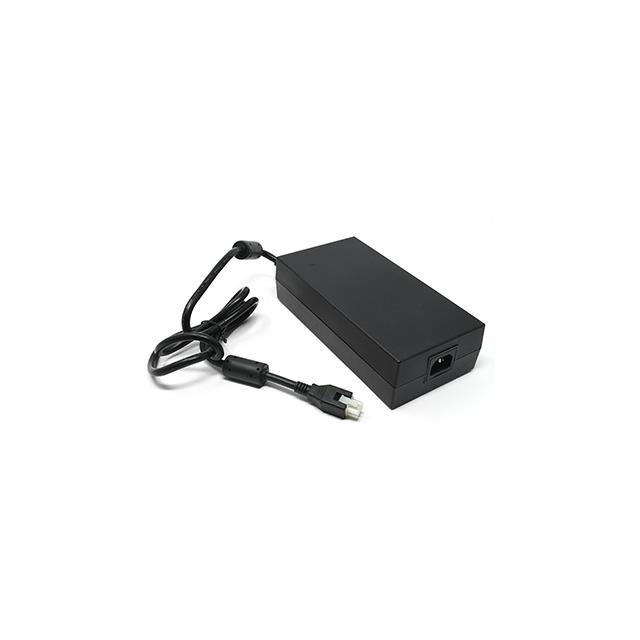

AC/DC DESKTOP ADAPTER 24V 300W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PEAMD310-14
ActiveTT Electronics/Power Partners Inc.
AC/DC DESKTOP ADAPTER 24V 300W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PEAMD310-14 |
|---|---|
| Applications | Medical |
| Approval Agency | cURus, FCC, CE, TUV, CB |
| Cord Length | 47 " |
| Cord Length | 1.2 m |
| Current - Output (Max) [Max] | 12.5 A |
| Efficiency | Level VI |
| Form | Desktop (Class I) |
| Input Connector | IEC 320-C14 |
| Input Type | Cord |
| No Load Power Consumption | 500 mW |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | 0 °C |
| Output Connector | Rectangular, 6 Position |
| Power (Watts) | 300 W |
| Region Utilized | International |
| Size / Dimension [x] | 198.1 mm |
| Size / Dimension [x] | 7.8 in |
| Size / Dimension [y] | 101.6 mm |
| Size / Dimension [y] | 4 " |
| Size / Dimension [z] | 50.8 mm |
| Size / Dimension [z] | 2 " |
| Standard Number | 60601-1 |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Output | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 114.53 | |
| 5 | $ 111.90 | |||
Description
General part information
PEAMD310-14
24V 300 W AC/DC External Desktop (Class I) Adapter Cord (Sold Separately) Input
