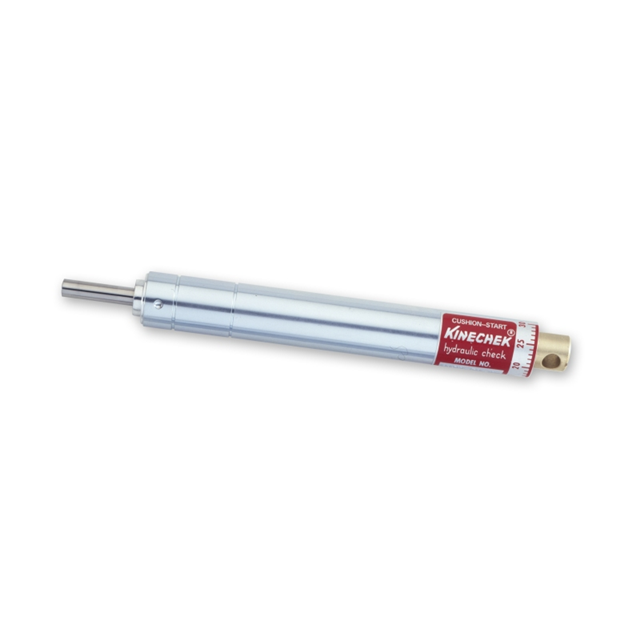

1102-31-1
ActiveDeschner Corporation
1" STROKE CUSHION START SPEED CO
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1102-31-1
ActiveDeschner Corporation
1" STROKE CUSHION START SPEED CO
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1102-31-1 |
|---|---|
| Actuation Force | 22.2 N |
| Actuation Force | 5 lbf |
| Features | Cushioned Start |
| Impact Capacity per Cycle | 13.56 J |
| Impact Capacity per Cycle | 120 inlb |
| Length - Extended [x] | 7.83 in |
| Length - Extended [x] | 198.88 mm |
| Operation | Single-Acting, Push |
| Reset Force | 4 lbf |
| Reset Force | 17.8 N |
| Reset Time | 0.063 s |
| Stroke Length | 1 in |
| Stroke Length | 25.4 mm |
| Technology | Hydraulic |
| Type | Speed Controller |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
1102-31-1
1" STROKE CUSHION START SPEED CO
Documents
Technical documentation and resources
