ZWX-6141RS3B
ActiveJoymax Electronics

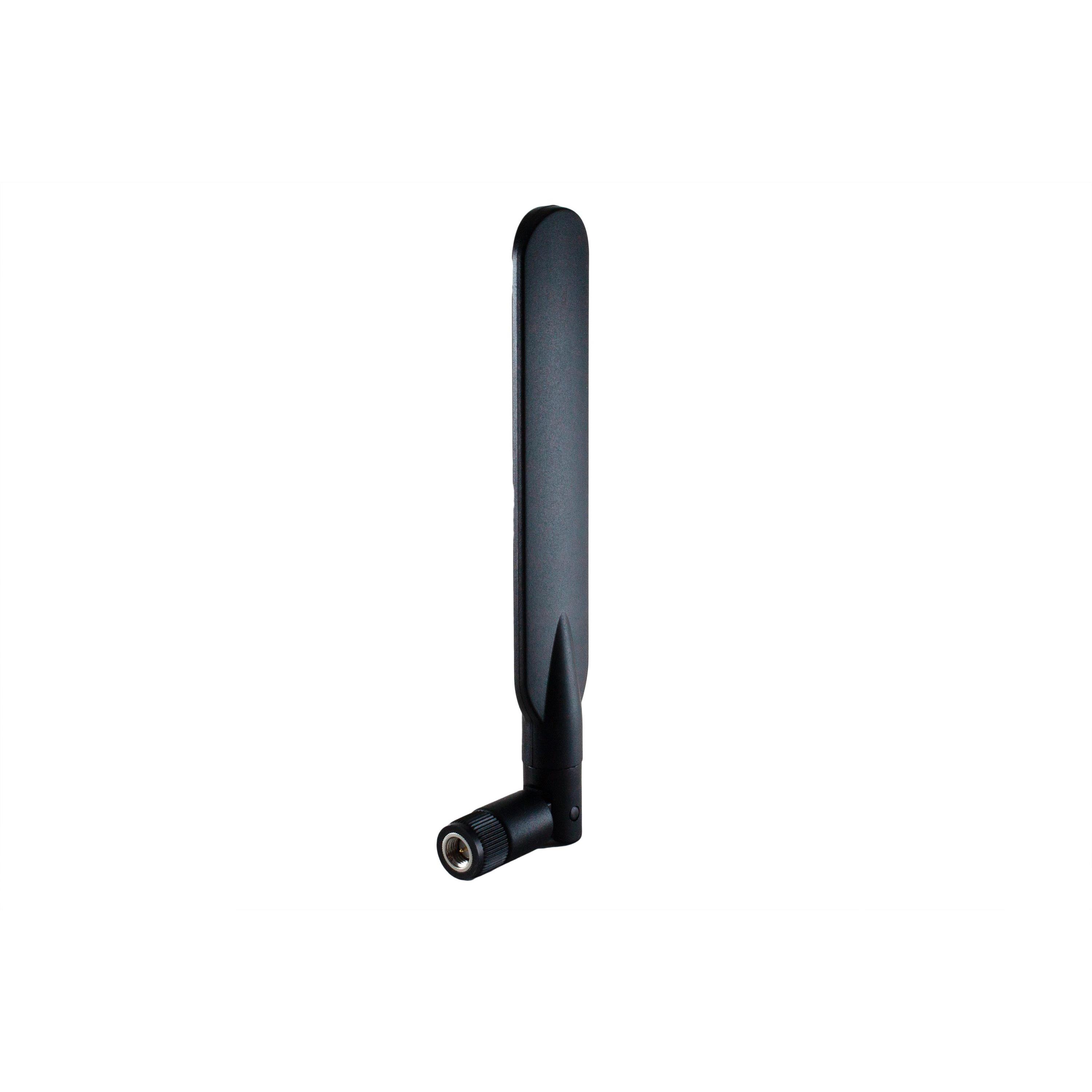

ANT 5G BLADE RP-SMA PLUG FEMALE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ZWX-6141RS3B
ActiveJoymax Electronics
ANT 5G BLADE RP-SMA PLUG FEMALE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ZWX-6141RS3B |
|---|---|
| Antenna Type | Blade, Tilt |
| Applications | 5G, 4G, LTE, 3G, 2G |
| Frequency (Center/Band) | 3.75 GHz, 2.2 GHz, 829 MHz, 4.7 GHz, 657.5 MHz, 5.5 GHz, 6.525 GHz |
| Frequency Group | Wide Band |
| Frequency Range [Max] | 5 GHz, 5.85 GHz, 4.2 GHz, 960 MHz, 2.17 GHz, 2.69 GHz, 7.125 GHz, 698 MHz |
| Frequency Range [Min] | 5.15 GHz, 617 MHz, 698 MHz, 1.71 GHz, 3.3 GHz, 4.4 GHz, 5.925 GHz, 2.17 GHz |
| Gain | 3.5 dBi, 3.4 dBi, 1.6 dBi, 3.8 dBi, 2 dBic, 4.8 dBi |
| Height (Max) [Max] | 160 mm |
| Height (Max) [Max] | 6.299 in |
| Mounting Type | Connector Mount |
| Number of Bands | 8 |
| Power - Max [Max] | 1 W |
| RF Family/Standard | Cellular |
| Termination | RP-SMA Female |
| VSWR | 2.1, 2.4, 1.9, 1.7, 1.8, 3.2 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 10.50 | |
| 10 | $ 9.62 | |||
| 50 | $ 8.75 | |||
| 100 | $ 7.87 | |||
| 250 | $ 7.22 | |||
| 500 | $ 6.56 | |||
| 1000 | $ 5.90 | |||
Description
General part information
ZWX-6141RS3B
657.5MHz, 829MHz, 2.2GHz, 3.75GHz, 4.7GHz, 5.5GHz, 6.525GHz 2G, 3G, 4G, 5G, LTE Blade, Tilt RF Antenna 617MHz ~ 698MHz, 698MHz~960MHz, 1.71GHz ~ 2.17GHz, 2.17GHz ~ 2.69GHz, 3.3GHz ~ 4.2GHz, 4.4GHz ~ 5GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz 1.6dBi, 4.8dBi, 2dBi, 3.4dBi, 3.8dBi, 3.5dBi RP-SMA Female Connector Mount
