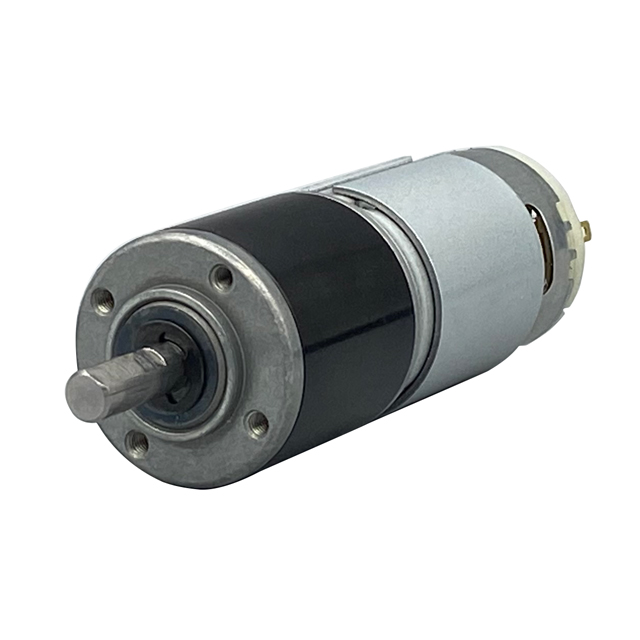

MOT-IG30GM-1:71
ActiveISL Products International
30MM PLANETARY GEAR MOTOR - BRUS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MOT-IG30GM-1:71 |
|---|---|
| Diameter - Shaft [diameter] | 6 mm |
| Diameter - Shaft [diameter] | 0.236 in |
| Gear Reduction Ratio | 71 |
| Length - Shaft and Bearing [x] | 3.988 in |
| Length - Shaft and Bearing [x] | 101.3 mm |
| Motor Type | Brushed |
| Mounting Hole Spacing | 24 mm |
| Mounting Hole Spacing | 0.945 " |
| Power - Rated | 7.43 W |
| RPM | 76 RPM |
| Size / Dimension | Round |
| Size / Dimension [diameter] | 1.181 inches |
| Size / Dimension [diameter] | 30 mm |
| Torque - Max Momentary (oz-in / mNm) | 263.86 oz-in |
| Torque - Max Momentary (oz-in / mNm) | 1863.26 mNm |
| Torque - Rated (oz-in / mNm) | 931.63 mNm |
| Torque - Rated (oz-in / mNm) | 131.93 oz-in |
| Type | DC Motor |
| Voltage - Rated | 24 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 116.96 | |
| 100 | $ 78.92 | |||
Description
General part information
MOT-IG30GM-1:71
Brushed DC Motor Gearmotor 76 RPM 7.43W 24VDC
