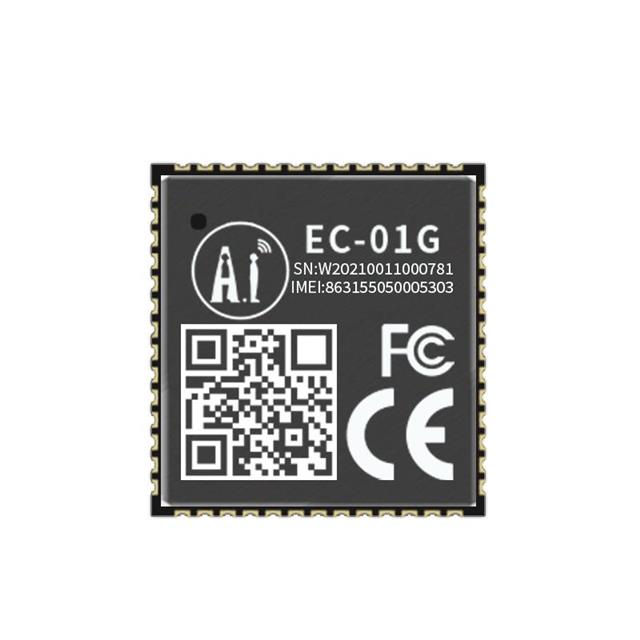

EC-01G
ActiveAi-Thinker
RF TXRX MODULE NB-IOT+GPS SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EC-01G
ActiveAi-Thinker
RF TXRX MODULE NB-IOT+GPS SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | EC-01G |
|---|---|
| Antenna Type | Antenna Not Included |
| Current - Receiving [Max] | 16 mA |
| Current - Receiving [Min] | 10 mA |
| Memory Size | 4 MB, 272 KB |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 54-SMD Module |
| Serial Interfaces | GPIO, I2C, PWM, SPI, UART, ADC |
| Utilized IC / Part | EC616S |
| Voltage - Supply [Max] | 4.5 V |
| Voltage - Supply [Min] | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 9.58 | |
| 10 | $ 8.78 | |||
| Digi-Reel® | 1 | $ 9.58 | ||
| 10 | $ 8.78 | |||
| Tape & Reel (TR) | 20 | $ 8.78 | ||
| 40 | $ 7.98 | |||
| 100 | $ 7.18 | |||
| 500 | $ 5.98 | |||
| 1000 | $ 5.39 | |||
Description
General part information
EC-01G
Transceiver Module Antenna Not Included Surface Mount
Documents
Technical documentation and resources
