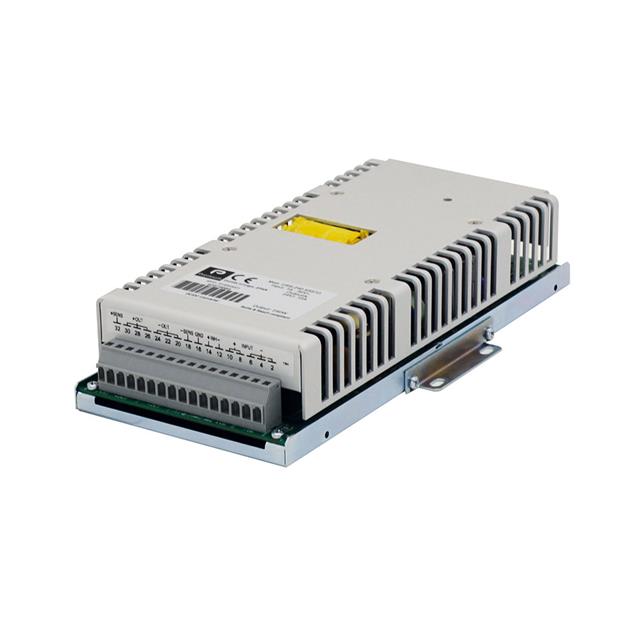

6669D
ActivePremium PSU
CTS-240 110/24V RAILWAY CLIP TE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 6669D |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | UKCA, CE |
| Current - Output (Max) [Max] | 11.7 A |
| Efficiency | 91 % |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Power (Watts) | 281 W |
| Size / Dimension [x] | 8.66 " |
| Size / Dimension [x] | 220 mm |
| Size / Dimension [y] | 100 mm |
| Size / Dimension [y] | 3.94 in |
| Size / Dimension [z] | 1.38 in |
| Size / Dimension [z] | 35 mm |
| Standard Number | 60950-1, 62368-1 |
| Type | Enclosed |
| Voltage - Input (Max) [Max] | 144 V |
| Voltage - Input (Min) [Min] | 66 V |
| Voltage - Isolation | 4.2 kV |
| Voltage - Output 1 | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 352.36 | |
Description
General part information
6669D
Enclosed DC DC Converter 1 Output 24V 11.7A 144V Input
