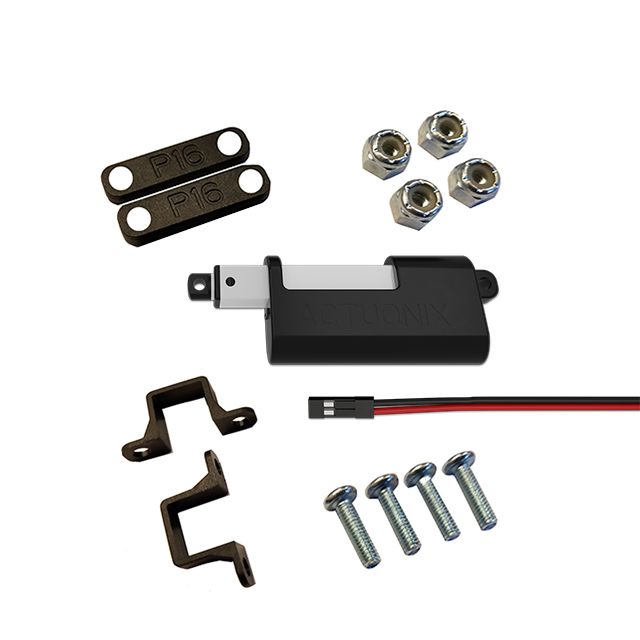

P16-S LINEAR ACTUATOR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
P16-50-256-12-S
ActiveActuonix Motion Devices Inc
P16-S LINEAR ACTUATOR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | P16-50-256-12-S |
|---|---|
| Accuracy | 0.3 mm |
| Construction | Ball Screw |
| Duty Cycle | 20 % |
| Features | Limit Switches |
| Gear Reduction Ratio | 256 |
| Ingress Protection | IP54 - Dust Protected, Water Resistant |
| Load Force (Dynamic) | 67.44 lbf |
| Load Force (Dynamic) | 300 N |
| Load Force (Static) | 122.4 lbf |
| Load Force (Static) | 500 N |
| Motor Type | Brushed |
| Operating Temperature [Max] [custom] | 50 °C |
| Operating Temperature [Min] [custom] | -10 °C |
| Stroke Length | 50 mm |
| Stroke Length | 1.969 in |
| Type | Linear Actuator |
| Voltage - Rated | 12 VDC |
