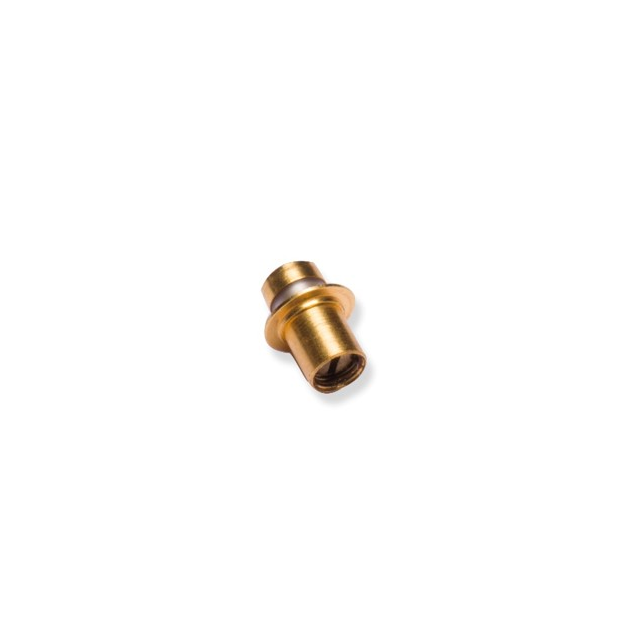

AT 27285
ActiveEXXELIA Temex
CAP TRIMMER 0.4-2.5PF 500V TH
Deep-Dive with AI
Search across all available documentation for this part.
AT 27285
ActiveEXXELIA Temex
CAP TRIMMER 0.4-2.5PF 500V TH
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AT 27285 |
|---|---|
| Adjustment Type | Top |
| Capacitance Range [Max] | 2.5 pF |
| Capacitance Range [Min] | 0.4 pF |
| Dielectric Material | Sapphire |
| Features | General Purpose |
| Height - Seated (Max) [Max] | 5.8 mm |
| Height - Seated (Max) [Max] | 0.23 in |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Q @ Freq | 250 MHz, 4000 |
| Size / Dimension [diameter] | 0.118 in |
| Size / Dimension [diameter] | 3 mm |
| Voltage - Rated | 500 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 30.00 | |
Description
General part information
AT 27285
0.4 ~ 2.5pF Trimmer Capacitor 500 V Top Through Hole
Documents
Technical documentation and resources
No documents available
