Technical Specifications
Parameters and characteristics for this part
| Specification | AN_MASTER_001-4 |
|---|---|
| Antenna Type | Panel |
| Applications | 4G, 5G, GPS, LTE |
| Features | Cable - 1m |
| Frequency (Center/Band) [custom] | 1.575 GHz |
| Frequency (Center/Band) [custom] | 3.3 GHz |
| Frequency Group | Wide Band |
| Frequency Range [Max] | 6 GHz, 1.578 GHz |
| Frequency Range [Min] | 1.572 GHz, 600 MHz |
| Gain | 6 dB |
| Height (Max) [z] | 1.772 in |
| Height (Max) [z] | 45 mm |
| Ingress Protection | IP67 |
| Mounting Type | Screw, Magnetic, Adhesive, Screw Mount |
| Number of Bands | 2 |
| RF Family/Standard | Cellular, Navigation |
| Termination | SMA |
| VSWR | 2 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 166.65 | |
| 10 | $ 152.76 | |||
| 25 | $ 158.59 | |||
Description
General part information

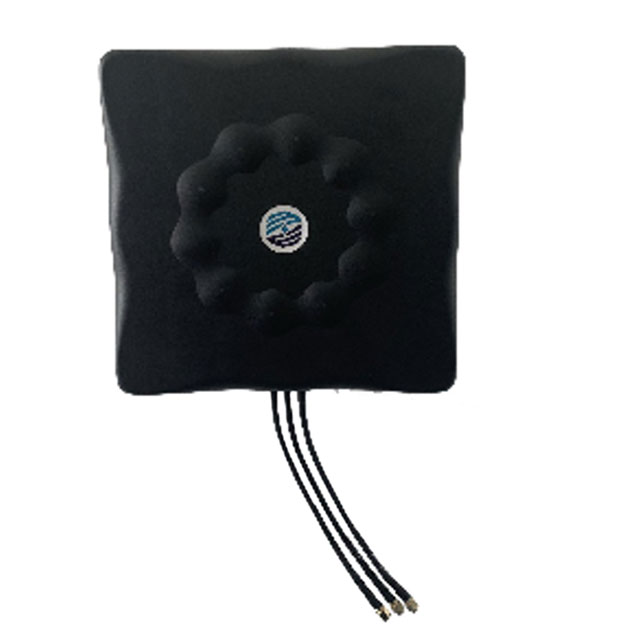

AN_MASTER_001-4
RF ANTENNA 4G, 5G, GPS, LTE Panel SMA Screw Mount
Documents
Technical documentation and resources
