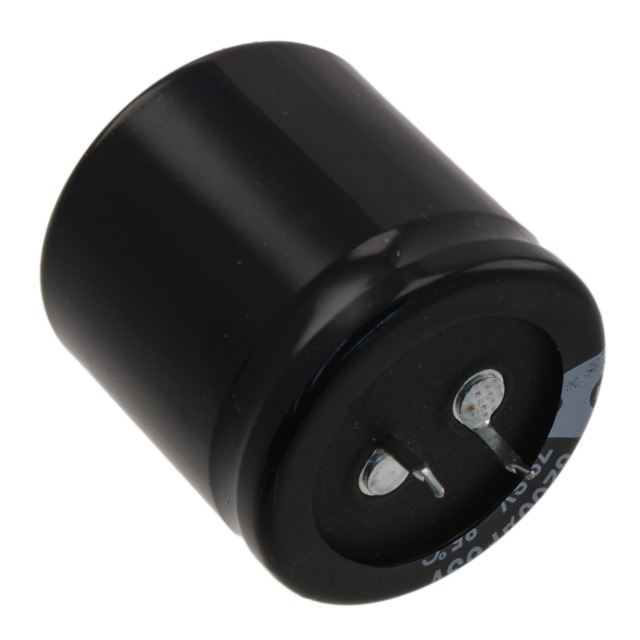

SLPX563M010H5P3
ActiveCornell Dubilier Knowles
CAP ALUM 56000UF 20% 10V SNAP TH
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SLPX563M010H5P3
ActiveCornell Dubilier Knowles
CAP ALUM 56000UF 20% 10V SNAP TH
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SLPX563M010H5P3 |
|---|---|
| Applications | General Purpose |
| Capacitance | 56000 µF |
| ESR (Equivalent Series Resistance) | 13 mOhm |
| Height - Seated (Max) [Max] [z] | 35 mm |
| Height - Seated (Max) [Max] [z] | 1.378 in |
| Lead Spacing | 0.394 in |
| Lead Spacing | 10 mm |
| Lifetime @ Temp. | 3000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Radial, Can - Snap-In |
| Polarization | Polar |
| Ripple Current @ High Frequency | 8 A |
| Ripple Current @ Low Frequency | 6.4 A |
| Size / Dimension [diameter] | 1.378 in |
| Size / Dimension [diameter] | 35 mm |
| Tolerance | 20 % |
| Voltage - Rated | 10 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 3000 | $ 2.34 | |
Description
General part information
SLPX563M010H5P3
56000 µF 10 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 13mOhm @ 120Hz 3000 Hrs @ 85°C
