048100
Activecongatec
SBC 2.0GHZ 4 CORE 2MB/8GB RAM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
048100
Activecongatec
SBC 2.0GHZ 4 CORE 2MB/8GB RAM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 048100 |
|---|---|
| Cooling Type | Fan |
| Core Processor | Atom x7-E3950 |
| Ethernet | RJ45 (2), GbE (2) |
| Expansion Site/Bus | mPCIe |
| Form Factor | Pico-ITX |
| Number of Cores | 4 |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | 0 °C |
| Power (Watts) | 12 W |
| RAM Capacity/Installed | 2 MB, 8 GB |
| RS-232 (422, 485) | 2 |
| Size / Dimension [x] | 3.94 in |
| Size / Dimension [x] | 100.07 mm |
| Size / Dimension [y] | 71.88 mm |
| Size / Dimension [y] | 2.83 in |
| Speed | 2 GHz |
| USB | USB 2.0 (2), USB 3.0 (3) |
| Video Outputs | DP, LVDS |
| Watchdog Timer | True |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
048100

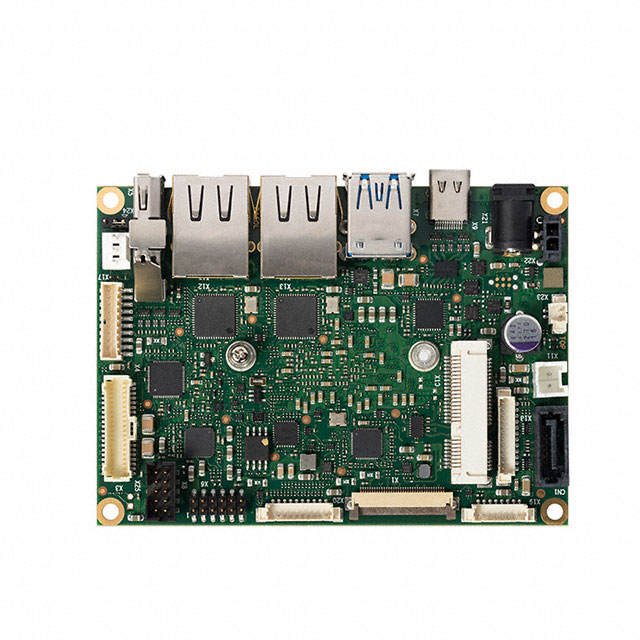

Single Board Computer 2.0GHz 4 Core 2MB/8GB RAM Atom x7-E3950
