100024984
ActiveTelegartner Inc
MCX PLG 90 SD/CR G8
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
100024984
ActiveTelegartner Inc
MCX PLG 90 SD/CR G8
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 100024984 |
|---|---|
| Body Finish | Tri-Metal |
| Body Material | Brass |
| Cable Group | RD-316 |
| Center Contact Material | Brass |
| Center Contact Plating | Gold |
| Connector Style | MCX |
| Connector Type | Male Pin, Plug |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Snap-On |
| Frequency - Max [Max] | 6000 MHz |
| Housing Color | Silver |
| Impedance | 50 Ohms |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Number of Ports | 1 |
| Shield Termination | Crimp |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 5 | $ 8.89 | |
| 10 | $ 8.45 | |||
| 25 | $ 8.00 | |||
| 50 | $ 7.65 | |||
| 100 | $ 7.02 | |||
| 250 | $ 6.85 | |||
Description
General part information
100024984

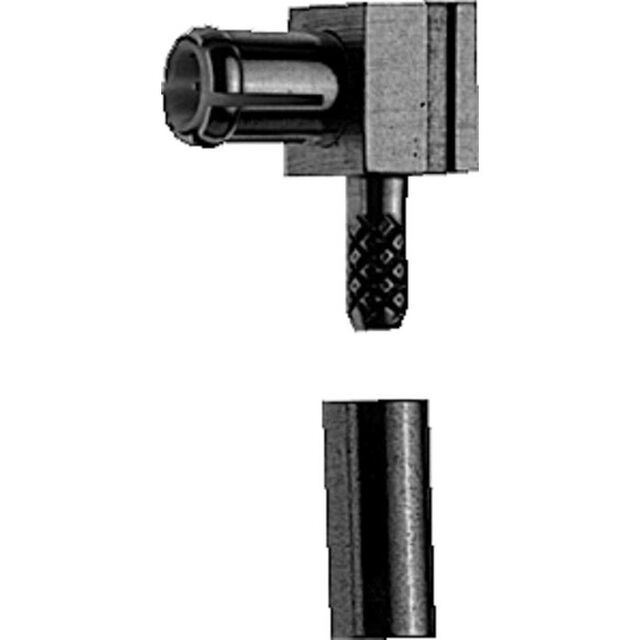

MCX Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line), Right Angle Solder
