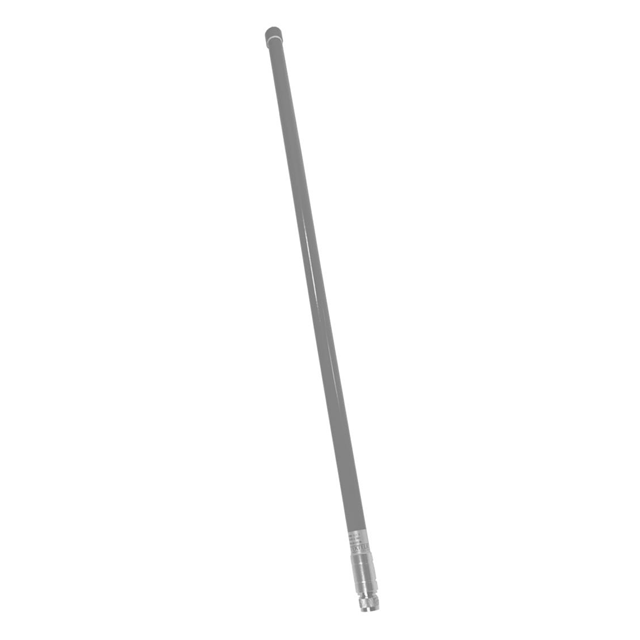

T0007469
ActiveTEKTELIC Communications Inc.
6 DBI ANTENNA, 860-930 MHZ
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
T0007469
ActiveTEKTELIC Communications Inc.
6 DBI ANTENNA, 860-930 MHZ
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | T0007469 |
|---|---|
| Antenna Type | Whip, Straight |
| Frequency (Center/Band) | 865 MHz, 914 MHz |
| Frequency Group [Max] | 1 GHz |
| Frequency Group [Min] | 300 MHz |
| Frequency Range [Max] | 930 MHz |
| Frequency Range [Min] | 860 MHz |
| Gain | 6 dB |
| Height (Max) [Max] | 31.496 in |
| Height (Max) [Max] | 800 mm |
| Mounting Type | U-Lock |
| Number of Bands | 1 |
| Power - Max [Max] | 20 W |
| Termination | N-J |
| VSWR | 1.8 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 86.36 | |
Description
General part information
T0007469
RF ANTENNA Whip, Straight N-J U-Lock
Documents
Technical documentation and resources
