Technical Specifications
Parameters and characteristics for this part
| Specification | CU200211-Y100 |
|---|---|
| Character Size [y] | 6.52 mm |
| Character Size [z] | 10.51 mm |
| Display Format [x] | 20 |
| Display Format [y] | 2 |
| Display Type | Character |
| Format [x] | 5 Dots |
| Format [y] | 8 Dots |
| Interface | Parallel/Serial |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Outline L x W x H [x] | 190 mm |
| Outline L x W x H [y] | 55 mm |
| Outline L x W x H [z] | 9.7 mm |
| Viewing Area [x] | 159 mm |
| Viewing Area [y] | 23.6 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
CU200211-Y100

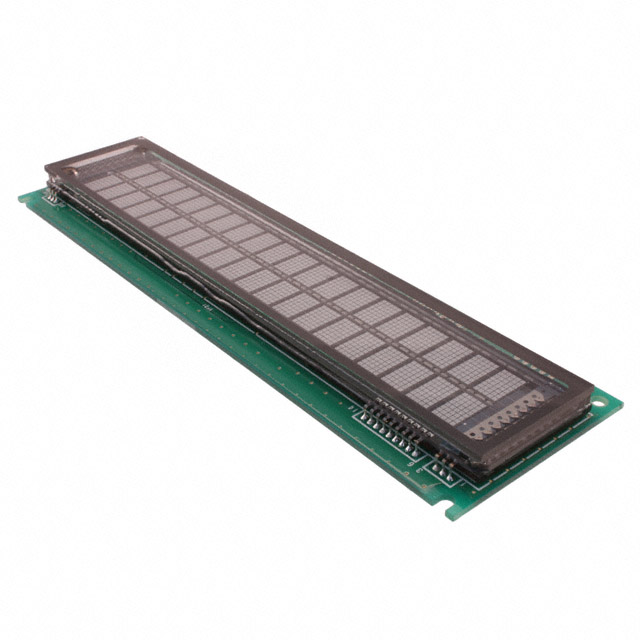

Vacuum Fluorescent Display (VFD) 20 x 2 Character 5V Parallel/Serial 190.00mm x 55.00mm x 9.70mm
