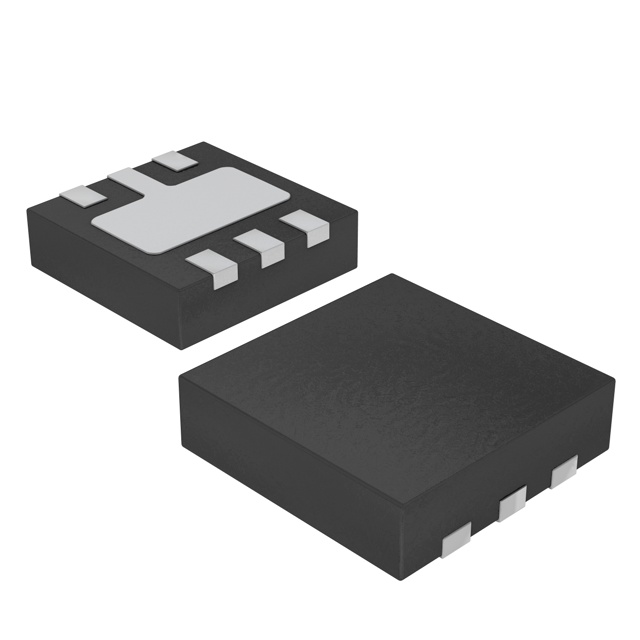

UM1540DA-30
ActiveUnion Semiconductor International Limited
IC REG LINEAR 3V 300MA 6-DFN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
UM1540DA-30
ActiveUnion Semiconductor International Limited
IC REG LINEAR 3V 300MA 6-DFN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | UM1540DA-30 |
|---|---|
| Control Features | Enable |
| Current - Output | 300 mA |
| Current - Quiescent (Iq) | 1.5 µA |
| Mounting Type | Surface Mount |
| Number of Regulators | 1 |
| Operating Temperature [Max] | 125 ¯C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Positive |
| Output Type | 1.81 mOhm |
| Protection Features | Over Current, Over Temperature |
| PSRR [Max] | 56 dB |
| PSRR [Min] | 42 dB |
| Supplier Device Package | 6-DFN (2x2) |
| Voltage - Input (Max) [Max] | 6 V |
| Voltage Dropout (Max) [Max] | 0.33 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 2 | $ 0.32 | |
| 10 | $ 0.28 | |||
| 100 | $ 0.22 | |||
| 500 | $ 0.15 | |||
Description
General part information
UM1540DA-30
Linear Voltage Regulator IC Positive Fixed 1 Output 300mA 6-DFN (2x2)
