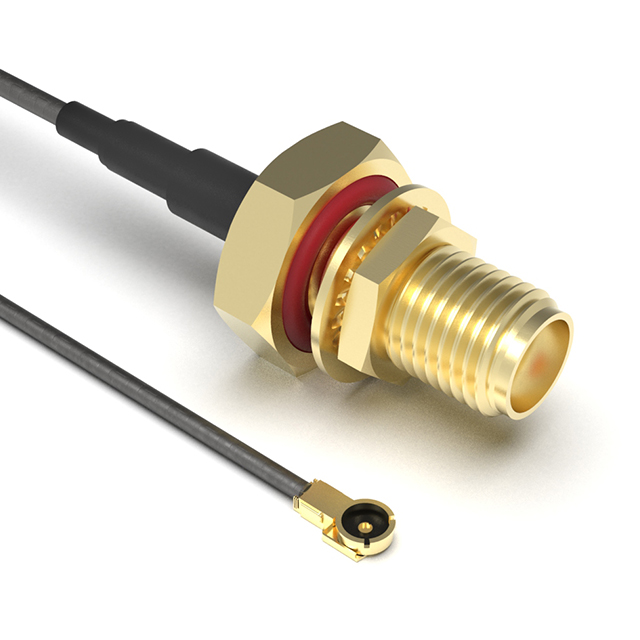

CABLE 375 RF-300-A-2
ActiveGCT (Gradconn)
COAX CBL MHF1 TO SMA 11.8"
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CABLE 375 RF-300-A-2
ActiveGCT (Gradconn)
COAX CBL MHF1 TO SMA 11.8"
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CABLE 375 RF-300-A-2 |
|---|---|
| 1st Connector | SMA Jack |
| 1st Connector Mounting Feature | Bulkhead - Front Side Nut |
| 1st Connector Mounting Type | Panel Mount |
| 1st Contact Gender | Female |
| 2nd Connector | I-PEX MHF1 Plug, Right Angle |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Female |
| Cable Type | 1.13mm OD Coaxial Cable |
| Color | Gray |
| Frequency - Max [Max] | 6000 MHz |
| Ingress Protection | IP67/IP68 - Dust Tight, Waterproof |
| Length [x] | 300 mm |
| Length [x] | 11.811 in |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Overall Impedance | 50 Ohms |
| Style | I-PEX MHF1 to SMA |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 12.98 | |
| 10 | $ 11.03 | |||
| 25 | $ 10.34 | |||
| 50 | $ 9.84 | |||
| 100 | $ 9.37 | |||
| 250 | $ 8.79 | |||
| 500 | $ 8.37 | |||
| 1000 | $ 7.97 | |||
Description
General part information
CABLE 375 RF-300-A-2
Cable Assembly Coaxial I-PEX MHF1 to SMA 1.13mm OD Coaxial Cable 11.811" (300.00mm)
