ANT-2450-3-O
ActiveDoodle Labs
2.4 GHZ ANTENNAS FOR SMART RADIO
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ANT-2450-3-O
ActiveDoodle Labs
2.4 GHZ ANTENNAS FOR SMART RADIO
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ANT-2450-3-O |
|---|---|
| Antenna Type | Whip, Straight |
| Frequency (Center/Band) | 2.361 GHz |
| Frequency Range [Max] | 2.482 GHz |
| Frequency Range [Min] | 2.24 GHz |
| Gain | 3 dBi |
| Height (Max) [Max] | 5.394 in |
| Height (Max) [Max] | 137 mm |
| Ingress Protection | IP67 |
| Mounting Type | Connector Mount |
| Number of Bands | 1 |
| Power - Max [Max] | 50 W |
| VSWR | 1.5 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 190.00 | |
Description
General part information
ANT-2450-3-O

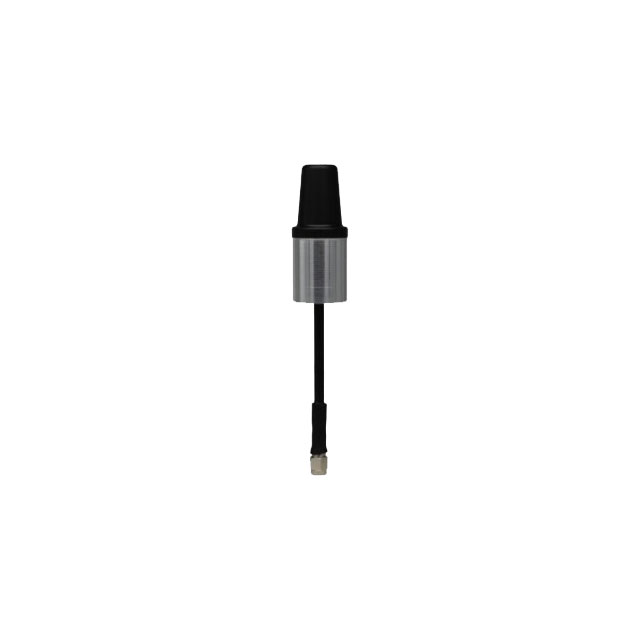

RF ANTENNA Whip, Straight SMA Male Connector Mount
