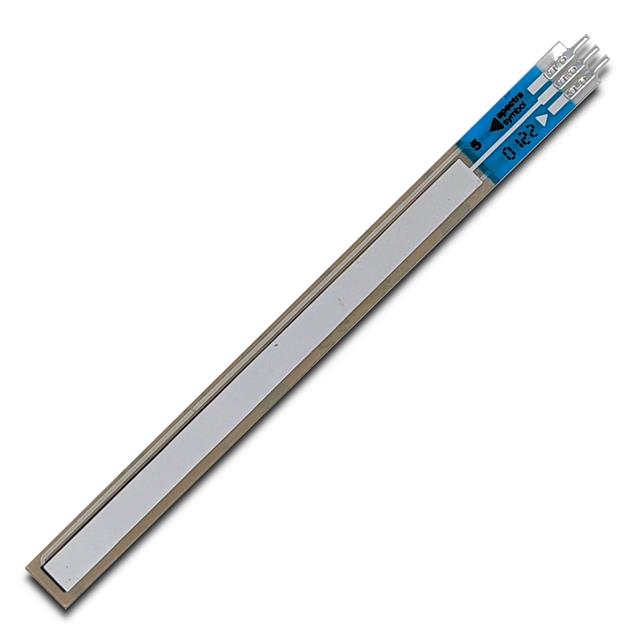

TSP-L-0100-103-1%-ST
ActiveSpectra Symbol
SENSOR LINEAR 100MM SOLDER TAB
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TSP-L-0100-103-1%-ST
ActiveSpectra Symbol
SENSOR LINEAR 100MM SOLDER TAB
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TSP-L-0100-103-1%-ST |
|---|---|
| Actuator Type | Flexible Membrane - Linear |
| For Measuring | Linear Position |
| Linear Range [Max] | 100 mm |
| Linear Range [Max] | 3.94 in |
| Linear Range [Min] | 0 mm |
| Linear Range [Min] | 0 in |
| Linearity | 1 % |
| Mounting Type | Custom |
| Operating Temperature [Max] | 50 °C |
| Operating Temperature [Min] | -40 °C |
| Output | Resistive |
| Package / Case | Sensor Strip |
| Resistance | 10000 Ohms |
| Resistance Tolerance | 20 % |
| Technology | Resistive |
| Termination Style | Solder Tab |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 15.03 | |
| 10 | $ 12.63 | |||
| 100 | $ 10.58 | |||
| 500 | $ 9.34 | |||
| 1000 | $ 8.85 | |||
Description
General part information
TSP-L-0100-103-1%-ST
Resistive Sensor Linear Position Flexible Membrane - Linear Solder Tab
