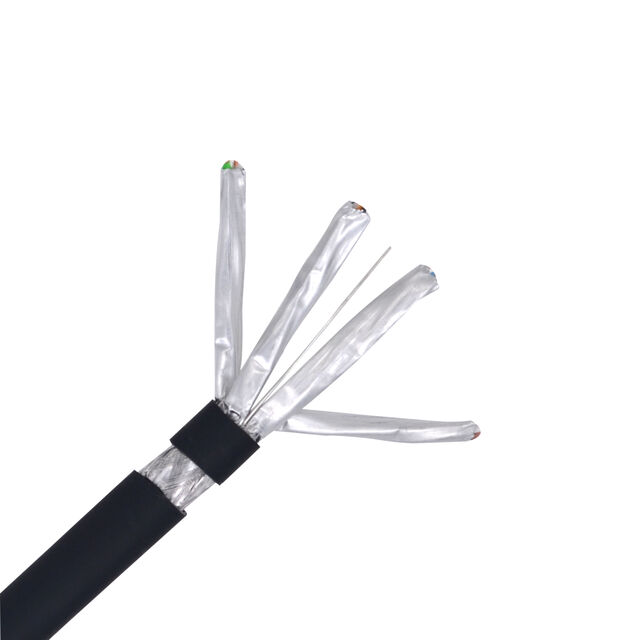

CAT7-1000BK
ActiveTriplett Test Equipment and Tools
CAT7 OUTDOOR GEL FILLED SF/FTP C
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CAT7-1000BK |
|---|---|
| Cable Type | Cat7, Multi-Pair |
| Conductor Insulation | Foam Polyethylene (FPE) |
| Conductor Material | Copper, Bare |
| Conductor Strand | Solid |
| Jacket (Insulation) Diameter [diameter] | 0.307 in |
| Jacket (Insulation) Diameter [diameter] | 7.8 mm |
| Jacket (Insulation) Thickness | 0.62 mm |
| Jacket (Insulation) Thickness | 0.0244 in |
| Jacket Color | Black |
| Length | 1000 ft |
| Length | 304.8 m |
| Number of Conductors | 8 |
| Operating Temperature [Max] | 75 ░C |
| Operating Temperature [Min] | -40 °C |
| Shield Material | Copper, Tinned |
| Shield Type | Foil, Braid |
| Voltage | 30 V |
| Wire Gauge | 23 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Retail Package | 1 | $ 419.99 | |
Description
General part information
CAT7-1000BK
8 (4 Pair Twisted) Conductor Multi-Pair, Cat7 Cable Black 23 AWG Foil, Braid 1000.0' (304.8m)
