X8718-126-50-RO
ActiveLIN ENGINEERING

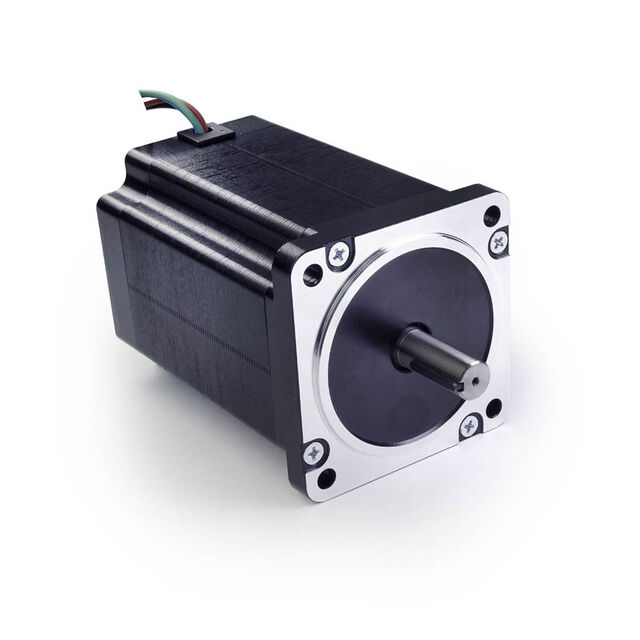

STEPPER MOTOR - NEMA 34
Deep-Dive with AI
Search across all available documentation for this part.
X8718-126-50-RO
ActiveLIN ENGINEERING
STEPPER MOTOR - NEMA 34
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | X8718-126-50-RO |
|---|---|
| Coil Resistance | 0.72 Ohms |
| Coil Type | Bipolar |
| Current Rating (Amps) | 5 A |
| Diameter - Shaft [diameter] | 0.315 in |
| Diameter - Shaft [diameter] | 8 mm |
| Features | Shaft Key Included |
| Length - Shaft and Bearing [x] | 1.25 in |
| Length - Shaft and Bearing [x] | 31.75 mm |
| Mounting Hole Spacing | 2.74 in |
| Mounting Hole Spacing | 69.6 mm |
| NEMA Frame Size | 34 |
| Operating Temperature [Max] | 50 °C |
| Operating Temperature [Min] | -20 C |
| Rotor Inertia | 2200 gcm² |
| Size / Dimension [x] | 3.38 in |
| Size / Dimension [x] | 85.85 mm |
| Size / Dimension [y] | 85.85 mm |
| Size / Dimension [y] | 3.38 " |
| Step Angle | 1.8 ° |
| Steps per Revolution | 200 |
| Termination Style | Wire Leads |
| Torque - Holding (oz-in / mNm) | 12300 mNm |
| Torque - Holding (oz-in / mNm) | 1741.8 oz-in |
| Type | Hybrid |
| Voltage - Rated [custom] | 48 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 331.20 | |
| 5 | $ 324.83 | |||
| 10 | $ 318.47 | |||
Description
General part information
X8718-126-50-RO
Bipolar Stepper Motor Hybrid Frame Size 34 200.0 Step 5 A 48VDC
