TMR7302-150E/PFF5BB
ActiveMULTIDIMENSION
MINI TMR CURRENT SENSOR NOM 150A
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TMR7302-150E/PFF5BB |
|---|---|
| Accuracy | 2 % |
| Current - Sensing | 150 A |
| For Measuring | AC/DC |
| Frequency | 50 kHz |
| Linearity | 0.5 % |
| Mounting Type | Through Hole |
| Number of Channels | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Output | Analog Voltage |
| Package / Case | 5-CB Formed Leads, PFF |
| Polarization | Bidirectional |
| Response Time | 10 µs |
| Sensitivity | 13.33 mV/A |
| Sensor Type | Open Loop |
| Voltage - Supply [Max] | 5.25 V |
| Voltage - Supply [Min] | 4.75 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 2 | $ 2.75 | |
Description
General part information

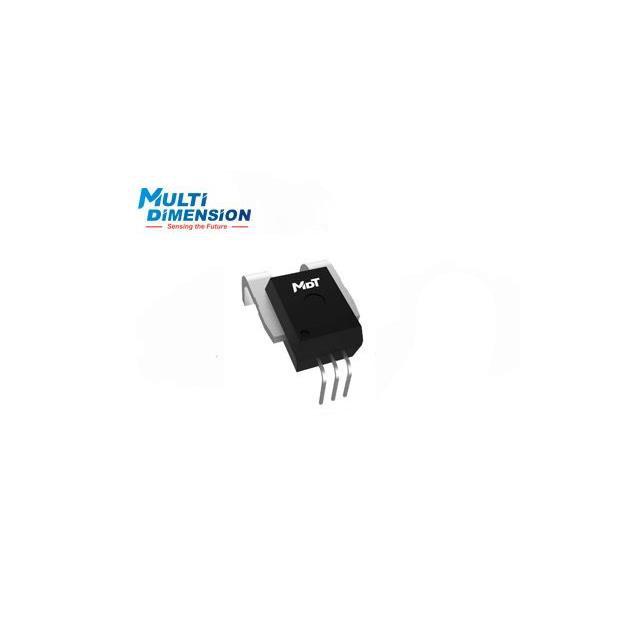

TMR7302-150E/PFF5BB
Current Sensor 150A 1 Channel Open Loop Bidirectional 5-CB Formed Leads, PFF
