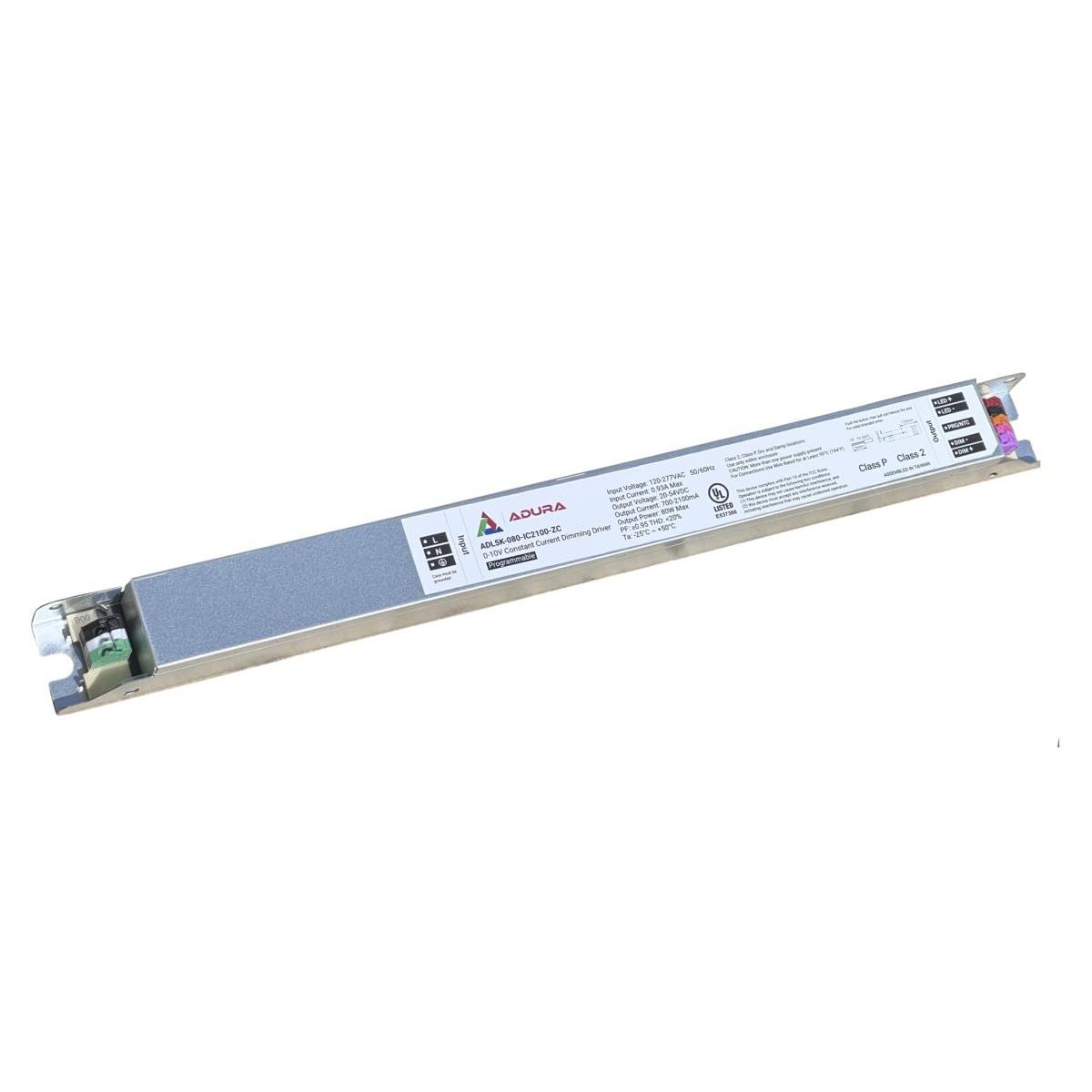

ADL5K-080-IC2100-ZC
ActiveADURA LED Soutions
120-277VAC, 16-54VDC, 700~2100MA
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ADL5K-080-IC2100-ZC |
|---|---|
| Approval Agency | UL |
| Current - Output (Max) [Max] | 2.1 A |
| Dimming | Analog |
| Efficiency | 90 % |
| Features | OTP, OVP, SCP |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 50 °C |
| Operating Temperature [Min] | -25 °C |
| Power (Watts) | 80 W |
| Ratings | IP20 |
| Size / Dimension [x] | 14.2 in |
| Size / Dimension [x] | 360.7 mm |
| Size / Dimension [y] | 30.5 mm |
| Size / Dimension [y] | 1.2 " |
| Size / Dimension [z] | 1 " |
| Size / Dimension [z] | 25.4 mm |
| Termination Style | Terminal Block |
| Topology | AC DC Converter |
| Type | Constant Current |
| Voltage - Input (Max) [Max] | 277 VAC |
| Voltage - Input (Min) [Min] | 120 VAC |
| Voltage - Isolation | 2000 V |
| Voltage - Output [Max] | 54 V |
| Voltage - Output [Min] | 20 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 17.68 | |
| 50 | $ 17.10 | |||
| 500 | $ 15.80 | |||
| 1000 | $ 14.95 | |||
Description
General part information
ADL5K-080-IC2100-ZC
2.1A 20 ~ 54V Constant Current LED Driver AC DC Converter Topology 1 Output
