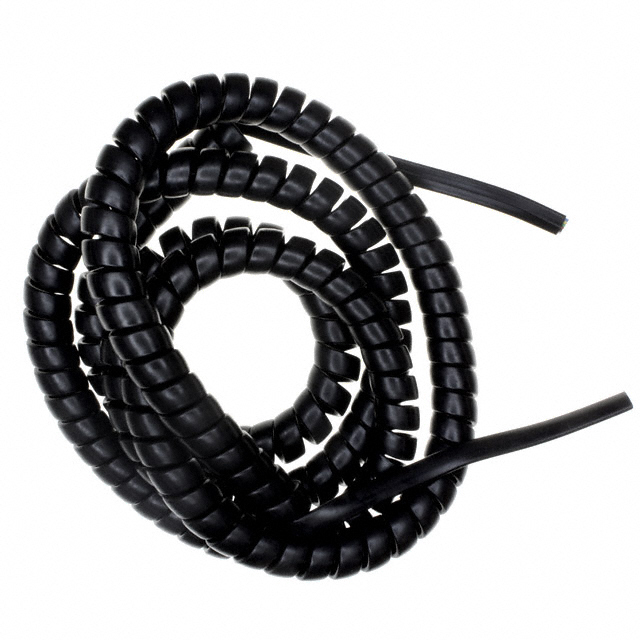

GLF-121-610-012
ObsoleteI.O. Interconnect
CABLE MOD COIL 6COND BLACK 14'
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
GLF-121-610-012
ObsoleteI.O. Interconnect
CABLE MOD COIL 6COND BLACK 14'
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | GLF-121-610-012 |
|---|---|
| Cable Height [z] | 0.098 in |
| Cable Height [z] | 2.5 mm |
| Cable Type | Coil |
| Cable Width | 0.267 in |
| Cable Width | 6.8 mm |
| Coil Diameter [diameter] | 0.551 in |
| Coil Diameter [diameter] | 14 mm |
| Conductor Material | Copper, Bare |
| Conductor Strand [custom] | 0.0047 in |
| Conductor Strand [custom] | 12 |
| Jacket (Insulation) Material | Polypropylene (PP) |
| Jacket Color | Black |
| Length - Coil Extended [x] | 14 ft |
| Length - Coil Extended [x] | 4.27 m |
| Length - Coil Retracted [x] | 1.12 m |
| Length - Coil Retracted [x] | 3.67 ft |
| Number of Conductors | 6 |
| Operating Temperature | 80 °C |
| Shielding | Unshielded |
| Voltage | 30 V |
| Wire Gauge | 26 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 4.32 | |
| 5 | $ 4.23 | |||
| 10 | $ 4.19 | |||
| 25 | $ 4.14 | |||
| 50 | $ 4.10 | |||
Description
General part information
GLF-121-610-012
6 Conductor Modular Coil Cable Black 14' (4.27m)
Documents
Technical documentation and resources
