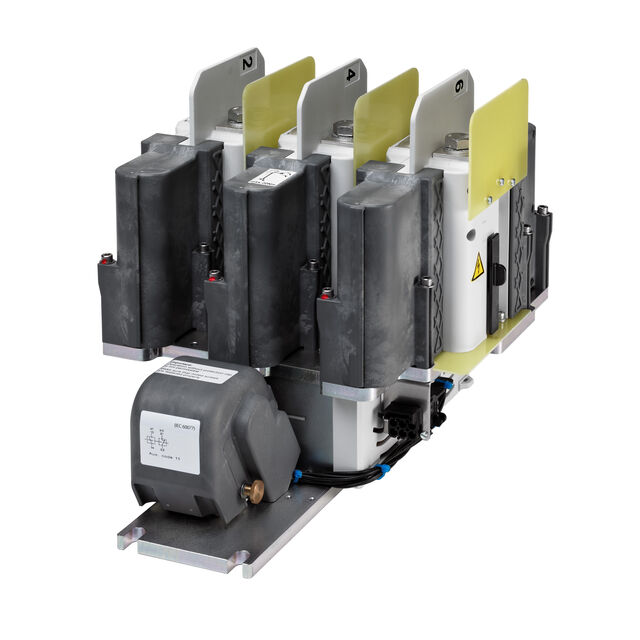

1-1758-351241
ActiveSchaltbau
CA1315/04 24ECM-00
Deep-Dive with AI
Search across all available documentation for this part.
1-1758-351241
ActiveSchaltbau
CA1315/04 24ECM-00
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 1-1758-351241 |
|---|---|
| Coil Current | 1.125 A |
| Coil Power | 27 W |
| Coil Resistance | 19.4 Ohms |
| Coil Voltage [Max] | 30 VDC |
| Coil Voltage [Min] | 16.8 VDC |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Contact Rating (Current) | 400 A |
| Features | Auxillary Contacts, Economizer |
| Must Operate Voltage | 12.5 VDC |
| Must Release Voltage | 2.4 VDC |
| Operate Time | 150 ms |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -40 °C |
| Release Time | 50 ms |
| Switching Voltage | 1.8 kVDC |
| Termination Style | Busbar |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 4608.83 | |
Description
General part information
1-1758-351241
CA1315/04 24ECM-00
Documents
Technical documentation and resources
No documents available
