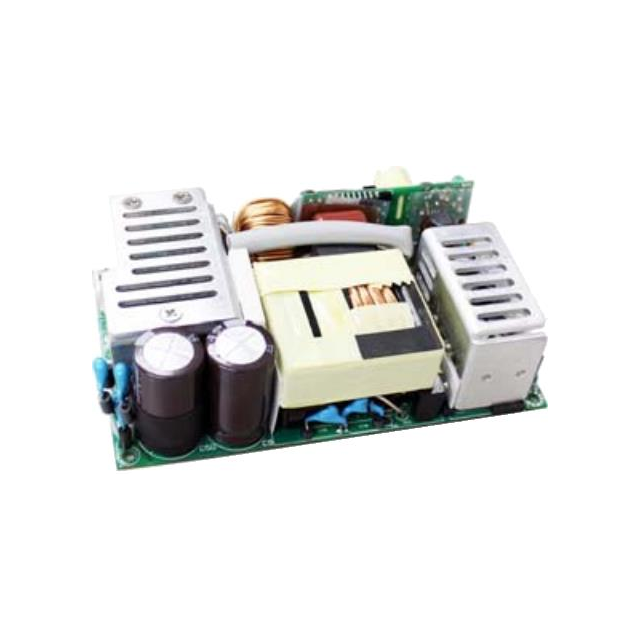

400525-06-0
ActiveN2Power
AC/DC CONVERTER 24V 240W
Deep-Dive with AI
Search across all available documentation for this part.
400525-06-0
ActiveN2Power
AC/DC CONVERTER 24V 240W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 400525-06-0 |
|---|---|
| Applications | ITE (Commercial), Medical |
| Approval Agency | CE, cURus |
| Current - Output 1 | 10 A |
| Efficiency | 93 % |
| Features | Standby Output, Universal Input, PFC |
| Minimum Load Required | False |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -30 °C |
| Power (Watts) | 499 W |
| Power (Watts) | 240 W |
| Size / Dimension [x] | 5 in |
| Size / Dimension [x] | 127 mm |
| Size / Dimension [y] | 84.6 mm |
| Size / Dimension [y] | 3.33 in |
| Size / Dimension [z] | 38.1 mm |
| Size / Dimension [z] | 1.5 " |
| Standard Number | 60950-1, 60601-1, 62368-1 |
| Type | Open Frame |
| Voltage - Input [Max] | 370 VDC, 264 VAC |
| Voltage - Input [Min] | 127 VDC, 90 VAC |
| Voltage - Isolation | 4000 V |
| Voltage - Output 1 | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 103.97 | |
Description
General part information
400525-06-0
Open Frame AC DC Converters 1 Output 24V 90 ~ 264 VAC, 127 ~ 370 VDC Input
