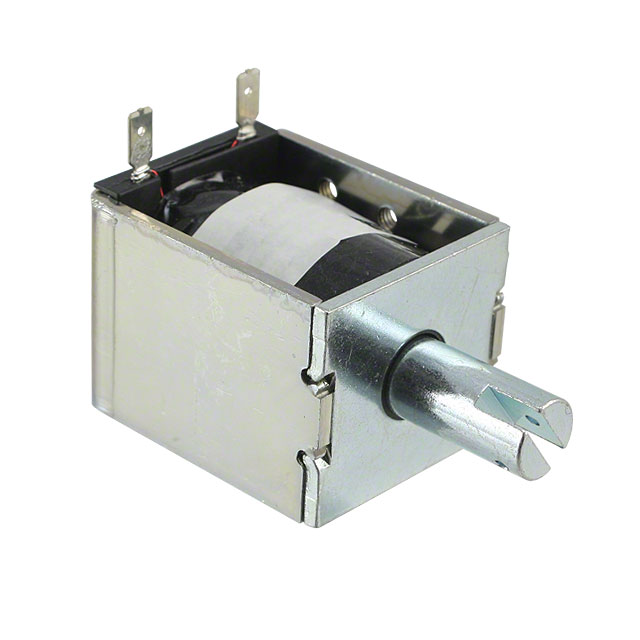

F0453A
ActiveSumida America Inc.
SOLENOID PULL CONTINUOUS 24V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
F0453A
ActiveSumida America Inc.
SOLENOID PULL CONTINUOUS 24V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | F0453A |
|---|---|
| DC Resistance (DCR) | 52 Ohm |
| Diameter - Shaft [diameter] | 12.7 mm |
| Diameter - Shaft [diameter] | 0.5 in |
| Duty Cycle | Continuous |
| Mounting Type | Chassis Mount |
| Power (Watts) | 11 W |
| Shaft Detail | Clevis |
| Size / Dimension [x] | 51.31 mm |
| Size / Dimension [x] | 2.02 in |
| Size / Dimension [y] | 36.58 mm |
| Size / Dimension [y] | 1.44 in |
| Size / Dimension [z] | 41.4 mm |
| Size / Dimension [z] | 1.63 in |
| Stroke Length | 1 in |
| Stroke Length | 25.4 mm |
| Technology | Electromechanical |
| Termination Style | Quick Connect - 0.187" (4.7mm) |
| Type | Open Frame (Pull) |
| Voltage - Rated | 24 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 26.47 | |
| 10 | $ 23.12 | |||
| 25 | $ 21.91 | |||
| 50 | $ 21.04 | |||
| 100 | $ 20.20 | |||
| 250 | $ 19.14 | |||
| 500 | $ 18.38 | |||
Description
General part information
F0453A
Continuous Duty Solenoid Open Frame (Pull) Type 1.000" (25.40mm) Stroke 24VDC Chassis Mount
