GHSI-19-100-A-02-20-S
ActiveAlliance Sensors Group

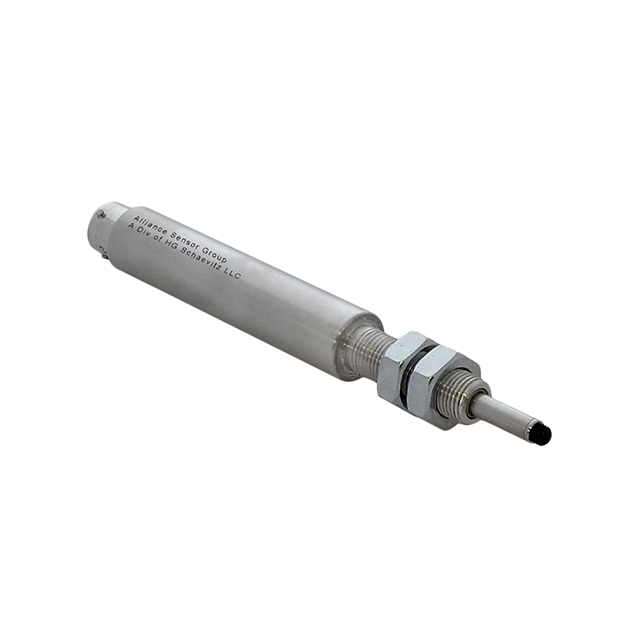

SENSOR LINEAR 101.6MM CONNECTOR
Deep-Dive with AI
Search across all available documentation for this part.
GHSI-19-100-A-02-20-S
ActiveAlliance Sensors Group
SENSOR LINEAR 101.6MM CONNECTOR
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | GHSI-19-100-A-02-20-S |
|---|---|
| Actuator Type | Round Shaft |
| For Measuring | Linear Position |
| Linear Range [Max] | 101.6 mm |
| Linear Range [Max] | 4 in |
| Linear Range [Min] | 0 mm |
| Linear Range [Min] | 0 in |
| Linearity | 0.15 % |
| Mounting Type | Chassis Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -20 C |
| Output [Max] | 20 mA |
| Output [Min] | 4 mA |
| Package / Case | Cylinder |
| Technology | LVIT (Linear Variable Inductance Transducer) |
| Termination Style | Connector |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 765.17 | |
Description
General part information
GHSI-19-100-A-02-20-S
LVIT (Linear Variable Inductance Transducer) Sensor Linear Position Round Shaft Connector
Documents
Technical documentation and resources
No documents available
