RJ-1004-30R-NL
ActiveRDI, Inc.
RCA JACK
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RJ-1004-30R-NL
ActiveRDI, Inc.
RCA JACK
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RJ-1004-30R-NL |
|---|---|
| Actual Diameter [diameter] | 3.7 mm |
| Actual Diameter [diameter] | 0.146 " |
| Body Color | Silver |
| Body Material | Brass |
| Connector Type | Phono (RCA) Jack |
| Contact Material | Brass |
| Contact Material - Plating [custom] | Nickel |
| Gender | Female |
| Housing Material | Polybutylene Terephthalate (PBT) |
| Industry Recognized Mating Diameter [diameter] | 9 mm, 3.2 mm |
| Insulation Color | Red |
| Internal Switch(s) | False |
| Mounting Type | Through Hole |
| Shielding | Unshielded |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 1.45 | |
| 250 | $ 1.45 | |||
| 1500 | $ 1.28 | |||
| 2500 | $ 1.05 | |||
| 5000 | $ 0.97 | |||
Description
General part information
RJ-1004-30R-NL

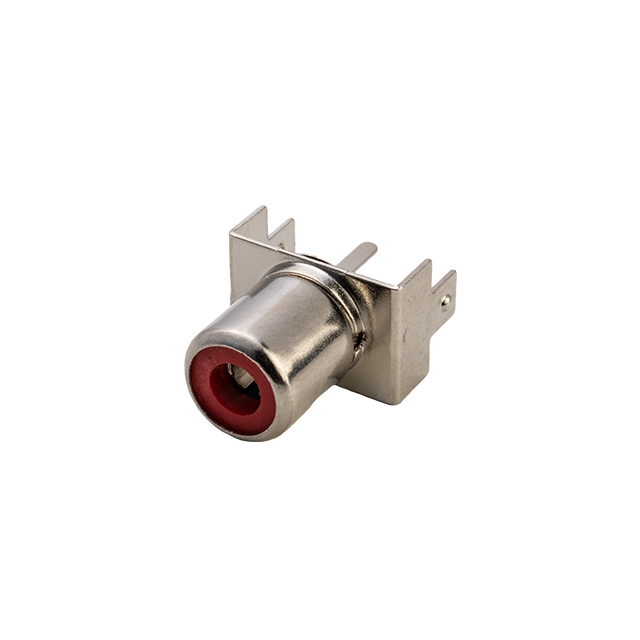

3.20mm ID, 9.00mm OD (RCA) Phono (RCA) Jack Connector Solder
