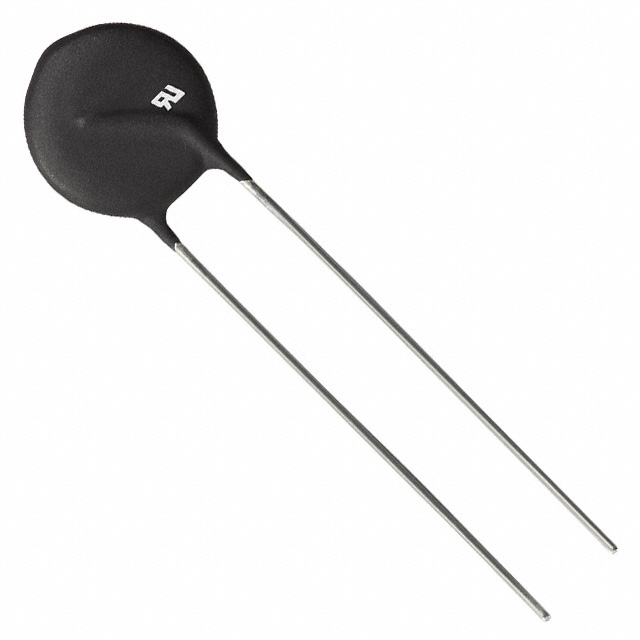

SL155R007A
ActiveAMETHERM
ICL 5 OHM 20% 7A 16MM
Deep-Dive with AI
Search across all available documentation for this part.
SL155R007A
ActiveAMETHERM
ICL 5 OHM 20% 7A 16MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SL155R007A |
|---|---|
| Approval Agency | CSA |
| Current - Steady State Max | 7 A |
| Diameter [diameter] | 0.63 " |
| Diameter [diameter] | 16 mm |
| Lead Spacing | 0.307 in |
| Lead Spacing | 7.8 mm |
| R @ 25°C | 5 Ohms |
| R @ Current | 90 mOhms |
| Tolerance | 20 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.43 | |
| 5 | $ 1.19 | |||
| 10 | $ 1.09 | |||
| 50 | $ 0.91 | |||
| 200 | $ 0.77 | |||
| 400 | $ 0.71 | |||
| 600 | $ 0.68 | |||
| 1000 | $ 0.64 | |||
| 5000 | $ 0.53 | |||
Description
General part information
SL155R007A
Inrush Current Limiter 5 Ohms ±20% 7 A 0.630" (16.00mm)
Documents
Technical documentation and resources
